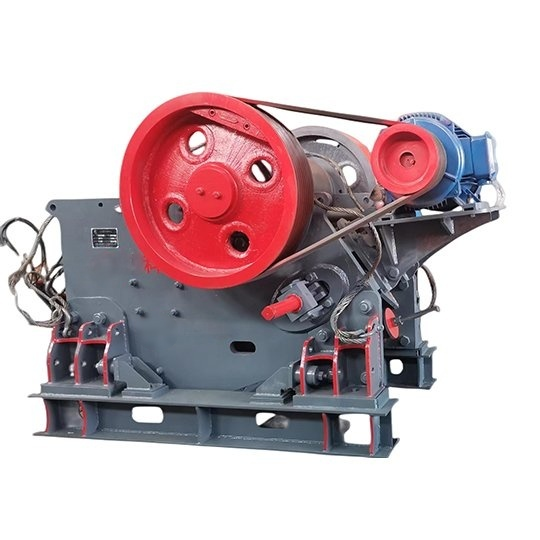

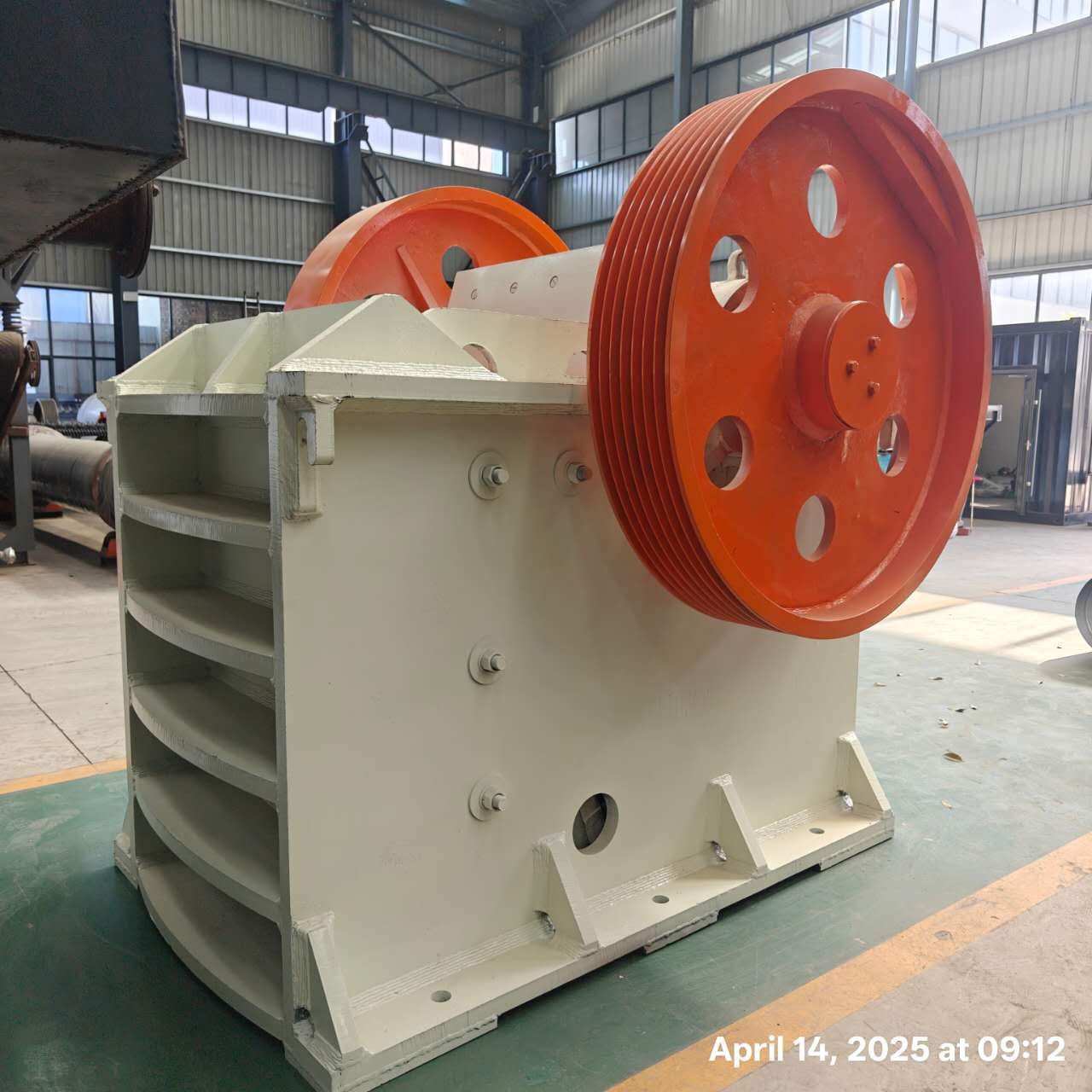

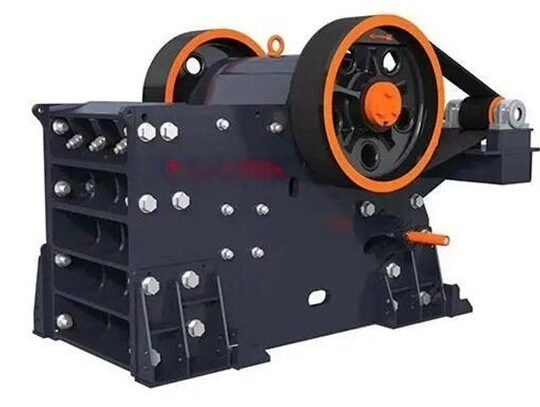

PEV Jaw Crusher
PEV Series jaw crushers stand the test of time and are ideal for Crushing and Screening application where efficiency and quality are paramount. With options of Automated Controls, Safety Features, Surge Hoppers, Dust Suppression system, Multiple Screens for extra products – stands to its reputation of being an investor’s best friend.
MINGYUAN PEV series Jaw crusher are premium class crushers due to their design as well as to the materials that are used to produce them. attention has been paid to even the smallest details,so as to ensure the highest possible functionality and reliability,without any compromises.
MINGYUAN PEV jaw crushers have been widely used in various quarry aggregate applications worldwide. The PEV type comes with larger feed openings and longer jaws with bigger crusher strokes for primary crushing purposes.
PEV jaw crusher is a widely used stone crusher.
- Feed size: 400-1200 mm
- Motor power: 55-300 KW
- Processing capacity: 50-1400T/H
Benefits
- All PEV Jaw Crushers ate built with top quality oil bearings and seals. The lubrication goes well satisfactory, and the yields as expected;
- PEV Jaw Crushers are equipped with hydraulic shim adjusters including hydraulic oil jacks, shim plates and other components. Changeovers of jaw discharge openings are easy and fast, downtime is minimized, and the production requirements are accurately met;
- All is with welded steel construction & stressed relieved Jaw Crusher main frame. Heavy duty reinforcement at major stress points;
- MINGYUAN Jaw Crushers perform crushing operations with compressive force exerted from advancing and retreating motions of a swing jaw which is suspended from an eccentric shaft at the top while supported by toggle plate, seat & block at the bottom. These safety toggle plate, seat & block provide complete jaw protection from any uncrushable, and ensures a nip angle be properly maintained;
- Since MINGYUAN Jaw Crushers have larger and deeper crushing chambers and the crushing angle is designed to be sharp, a very high crushing ratio can be achieved. For certain applications, a single toggle crusher can render both coarse and medium or medium and fine crushing quality.
Your Expert PEV Jaw Crusher Supplier In China.
MINGYUAN PEV Jaw Crusher is the main equipment of mining crushing.

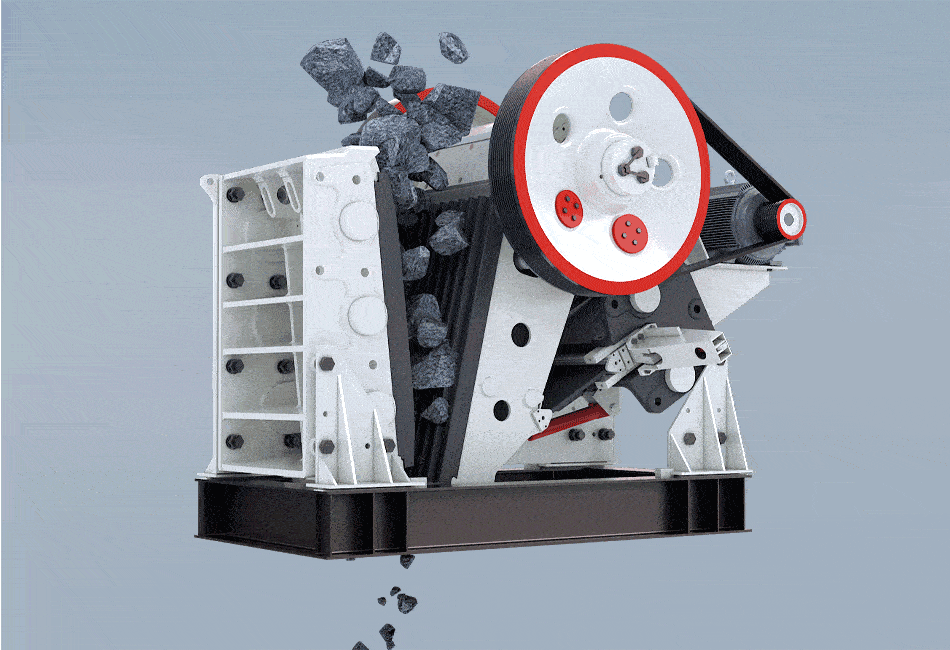

MINGYUAN PEV Jaw Crusher have high-performance, heavy-duty crusher designed for primary crushing in mining, quarrying and recycling. The motor drives the eccentric shaft to drive the movable jaw to swing periodically, forming an extrusion chamber with the fixed jaw to squeeze and crush the material. It can easily crush ores, stones, river pebbles, slag and other materials with a compressive strength of ≤300MPa.
It is usually used in conjunction with cone crushers, impact crushers, sand making machines and other equipment. It is widely used in building materials, metallurgy and other fields. It is the preferred equipment for coarse crushing operations.MINGYUAN PEV Jaw Crusher is designed for low energy consumption and high output, and can operate reliably in harsh environments. The equipment combines safety, easy maintenance and long-term durability, and is ideal for processing hard rock, ore and demolition gravel. Upgrade your crushing operations with PEV Jaw Crusher – its precision design can achieve the highest productivity and cost-effectiveness.
| Model | PEV500*750 | PEV600*900 | PEV750*1060 | PEV950*1250 | PEV1200*1600 | PEV1500*2000 | |
| Maximum Feed Size mm | 400 | 480 | 630 | 760 | 960 | 1200 | |
| Motor Power kw | 55-75 | 75-90 | 110 | 160 | 250 | 400 | |
| Product Size mm | Tight Edge Discharge Port mm | Processing Power t/h | |||||
| 0-60 | 40 | 60-85 | |||||
| 0-75 | 50 | 75-105 | |||||
| 0-90 | 60 | 90-125 | 120-155 | ||||
| 0-105 | 70 | 105-155 | 145-180 | 175-215 | |||
| 0-120 | 80 | 130-180 | 160-215 | 190-245 | |||
| 0-135 | 90 | 155-210 | 180-250 | 200-270 | |||
| 0-150 | 100 | 170-230 | 210-285 | 230-315 | 320-430 | ||
| 0-185 | 125 | 190-260 | 280-380 | 305-415 | 410-550 | ||
| 0-225 | 150 | 300-415 | 360-485 | 390-525 | 500-680 | 600-810 | |
| 0-260 | 175 | 420-595 | 470-640 | 565-820 | 720-975 | 920-1240 | |
| 0-300 | 200 | 535-760 | 635-965 | 810-1150 | 1025-1465 | ||
| 0-340 | 225 | 710-1115 | 900-1330 | 1130-1700 | |||
| 0-375 | 250 | 780-1270 | 990-1520 | 1250-1900 | |||
| 0-410 | 275 | 1080-1710 | 1365-2200 | ||||
| 0-450 | 300 | 1175-1910 | 1470-2465 | ||||
PE jaw crusher features and advantages
MINGYUAN PEV Jaw Crusher uses advanced movable adhered assembly and high manganese steel cast jaw plate, long service life.
The crushing chamber adopts a “V”-shaped structure, which makes the size of finished material more uniform.
Sandreck PEV Jaw Crusher adopt advanced crushing technology, accurate internal structure, and increase the crushing ability.
Adopts centralized lubrication system, which is safe and reliable, reducing the downtime and maintenance time.
The Sandreck PEV Jaw Crusher’s motor and frame are integrated, which reducing the start-up setup time of the whole machine.
The use of wedge adjustment has adjustable discharge port size in running or stopped equipment
