Cone Crusher

MINGYUAN Cone Crusher Introduction

MINGYUAN offers a comprehensive range of cone crushers to meet various crushing needs in mining, quarrying, and construction industries. Our cone crushers are ideal for secondary, tertiary, or even quaternary crushing stages, providing high reduction ratios, uniform product shapes, and reliable performance.

We supply full types of cone crushers, including the Symons cone crusher, known for its classic design and reliable spring-based crushing technology; the single-cylinder hydraulic cone crusher, which offers precise control, high efficiency, and easier maintenance; the compound cone crusher, combining spring and hydraulic functions for balanced performance; and the multi-cylinder hydraulic cone crusher, which delivers high productivity, fine particle size control, and optimized crushing forces for hard and abrasive materials.

MINGYUAN cone crushers are engineered with robust components, advanced automation systems, and wear-resistant materials to ensure long service life and stable operation under tough conditions. Whether processing granite, basalt, iron ore, limestone, or construction debris, our cone crushers offer superior crushing capability with adjustable output sizes and easy integration into mobile or stationary crushing plants.

From coarse to fine crushing applications, MINGYUAN cone crushers provide an energy-efficient, low-maintenance solution tailored to your production goals.

Cone crusher mainly used in the secondary, tertiary rock crushing stage with high efficiency and good performance, suitable for a variety of operations, such as mine, quarry, concrete, aggregate, recycling. Cone crushers are a compression type machine usually placed after the jaw crusher to further size reduction and particle shaping, feed materials are continuously squeezed and compressed between a fixed steel and a fixed steel.

single cylinder hydraulic cone crusher Introduction :
The GCH/S series single cylinder hydraulic cone crusher adopts material layer selection crushing. The crushing chamber is filled with material and which undergoes all-round compression, shearing, and kneading in the crushing chamber to achieve the purpose of crushing and self crushing, avoiding direct contact with the walls of the crushing chamber, effectively preventing lining plate wear and material contamination by metal pollutants, thereby reducing the wear degree of vulnerable and consumable parts of the machine and effectively extending the service life of wear-resistant parts. The crushing ratio is twice that of other similar equipment.

Features:
Higher performance and lower operating costs: The GCH/S series single cylinder hydraulic cone crusher is known for its heavy-duty design and high performance. The CLP constant crushing chamber type and high-power motor are equipped, making these crushers have production capacity comparable to other larger crushers in the vast majority of cases.

The hydraulic adjustment system provides safety protection and adjustment functions for the discharge port setting. A heavy-duty hydraulic cylinder is used to support the spindle and adjust its position. The hydraulic adjustment system provides automatic overload protection, allowing iron blocks or other unbreakable materials to pass safely and allowing the spindle to automatically return to its original position.
Suitable for various user needs: Our cone crusher has a wide range of applications. Each model has multiple standard crushing chamber types to choose from. By selecting different crushing chamber types and eccentricities, cone crushers can conveniently meet different production needs.

Easy to operate and maintain: We have been putting a considerable amount of effort into making the cone crusher easier to operate and maintain. All maintenance and inspections can be completed from the upper part of the crusher, which makes the operation of the crusher easier and the maintenance cost lower. The tight sealing of the internal structure of the crusher effectively protects the equipment from dust and other small particles, thereby reducing maintenance workload and further improving the service life of the crusher.

Technical Parameter:

Model	Power kw	Cavity	Max feeding size mm	Output size mm	Capability t/h	Weight kg	Dimension:L×W×H mm
GCH420	90	EC/C	155/103	10-32/10-32	55-128/59-128	5300	1300×1500×2160
		M/MF	76/58	10-19/8-19	57-102/43-75
		F/EF	42/31	4-16/4-8	27-57/30-40
GCH430	160	EC/C	215/168	13-38/10-38	82-212/81-215	9200	1700×1920×2570
		MC/M	129/101	10-32/8-32	73-184/61-162
		MF/F	86/62	6-25/4-25	52-126/42-105
		EF	42	4-8	70-90
GCH440	250	EC/C	250/204	13-44/13-44	112-395/108-378	14300	2000×2280×2960
		MC/M	157/124	13-38/13-38	118-328/125-339
		MF/F	98/83	13-38/8-32	124-299/90-251
		EF	47	4-8	100-125
GCH660	315	EC/CX	321/275	19-51/19-51	190-662/200-654	23500	2800×3000×3580
		C/MC	253/198	16-51/16-51	219-643/207-582
		M/MF	155/133	16-38/13-38	203-536/184-521
		F/EF	96/62	13-38/8-25	195-423/110-316
GCH870	630	EC/C	350/287	25-70/22-70	477-1512/483-1464	50000	2450×3050×4480
		MC/C	236/184	19-70/19-70	443-1373/432-1372
		MF/F	108/99	16-51/13-44	398-1070/357-912
		EF	88	10-44	290-775
GCH860	500	EC/C	315/263	16-51/16-51	326-1071/320-1126	50530	2101×2583×4047
		MC/M	196/152	16-51/16-51	314-1055/289-1036
GCH850	500	MF/F	123/97	10-44/10-44	210-700/189-680	49750	2101×2583×4138
		EF	72	10-44	168-560
GCH890	750	EC/C	428/382	25-70/22-70	594-2181/622-2193	97031	2900×3360×5300
		MC/M	302/219	19-70/16-70	542-2020/567-1814
		MF/F	149/139	16-70/13-57	507-1607/248-1458
GCH895	750	EFX/EF	112/97	13-57/10-70	392-1320/305-1210	96483	2900×3360×5300
		EEF	86	10-51	306-906
GCS420	90	EC/C	240/200	22-38/19-32	102-168/82-128	6800	1300×1500×2500
GCS430	160	EC/C	360/300	25-54/25-48	151-344/170-330	12000	1700×1900×3060
		MC	235	22-48	130-275
GCS440	250	EC/C	450/400	35-54/32-51	309-601/331-571	19300	2000×2280×3620
		MC	300	29-51	281-505
GCS660	315	EC/C	560/500	38-83/35-70	331-792/335-755	35000	2800×3000×4500

Multiple Cylinder Hydraulic Cone Crusher Introduction

The HPT Cone Crusher is a high-performance, multi-cylinder hydraulic cone crusher designed for efficient secondary and tertiary crushing. It offers excellent crushing efficiency, advanced automation, and high-capacity output with consistent particle size.

Widely used in mining, metallurgy, construction, and aggregate production, it is ideal for processing hard and abrasive materials such as granite, basalt, iron ore, and river stone. HPT Cone Crushers are commonly used to produce high-quality aggregates, railway ballast, and sand for concrete and asphalt applications.

Product Paramenters

Model	Cavity	Open Side Feeding Size(mm)	Closed Side Feeding Size(mm)	Minimum Discharge Port Size (mm)	Capacity(t/h)	Max Installed Power(kw)
HPT100	C1(Extra coarse)	175	140	19	45-100	90
	C2(Coarse)	125	105	13
	M(Medium)	100	70	10
	F1(Fine)	71	50	9
	F2(Extra fine)	33	20	6
HPT200	C2(Coarse)	235	190	19	65-250	160
	M(Medium)	171	120	16
	F1(Fine)	150	95	13
	F2(Extra fine)	116	70	8
HPT300	C1(Extra coarse)	265	230	25	85-440	220
	C2(Coarse)	240	210	20
	M(Medium)	190	150	15
	F1(Fine)	145	105	11
	F2(Extra fine)	120	80	8

HPT400	C1(Extra coarse)	360	290	30	135-625	315
	C2(Coarse)	310	250	25
	M(Medium)	260	196	20
	F1(Fine)	182	110	13
	F2(Extra fine)	135	90	10
HPT500	C1(Extra coarse)	370	330	38	200-790	400
	C2(Coarse)	320	290	28
	M(Medium)	245	210	22
	F1(Fine)	180	130	13
	F2(Extra fine)	150	95	10
HPT800	C1(Extra coarse)	450	352	38	265-1200	630
	C2(Coarse)	373	298	32
	M(Medium)	340	275	25
	F1(Fine)	280	230	16
	F2(Extra fine)	235	150	10

How Does HPT Cone Crusher Work?

HPT Cone Crushers are ideal for secondary and tertiary crushing in industries such as mining, metallurgy, construction, and aggregate production. They are well-suited for processing hard and abrasive materials, including granite, basalt, iron ore, river stone, and quartz. Known for their high crushing efficiency, precise control, and excellent particle shape, HPT Cone Crushers are widely used to produce high-quality aggregates and sand for concrete, asphalt, railway ballast, and other demanding infrastructure and construction applications.

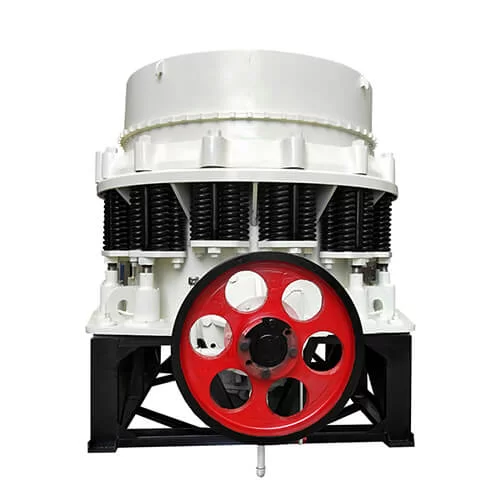

Symons Cone Crusher

1. Multiple crushing cavity type, flexible application.

2. Supporting large crushing ratio, the key parts choose special materials for manufacturing.

3. Easy to operate, reduce downtime, low power consumption, reasonable distribution.

4. Reasonable selection of parts and structural design, long service life.

5. Low maintenance cost for daily operation.

Type	Model	Cavity type	Diameter of cone (mm)	Adjusting range of discharge opening (mm)	Recommend feeding size when the output size (mm)	Max feeding size (mm)	Capacity (t/h)	Main motor power (kw)	Weight (kg)	Overall dimension (LWH) (mm)
2’FT	CSB-0607	Standard fine	600	6-38	70	60	16-50	30	4500	2195×1158×1651
	CSB-0609	Standard medium	600	10-38	95	80	18-65	30	4500	2195×1158×1651
	CSB-0611	Standard coarse	600	13-38	110	90	22-70	30	4500	2195×1158×1651
	CSD-0603	Short head fine	600	3-13	35	30	9-35	30	4500	2195×1158×1651
	CSD-0605	Short head coarse	600	5-16	50	40	22-70	30	4500	2195×1158×1651
3’FT	CSB-0910	Standard fine	900	9-22	102	85	45-91	75	9980	2656×1636×2241
	CSB-0917	Standard coarse	900	13-38	175	150	59-163	75	9980	2656×1636×2241
	CSB-0918	Standard super coarse	900	25-38	178	150	118-163	75	9980	2656×1636×2241
	CSD-0904	Short head fine	900	3-13	41	35	27-90	75	10530	2656×1636×2241
	CSD-0906	Short head medium	900	3-16	76	65	27-100	75	10530	2656×1636×2241
	CSD-0907	Short head coarse	900	6-19	102	85	59-129	75	10530	2656×1636×2241
4.25’FT	CSB-1313	Standard fine	1295	13-31	137	115	109-181	160	22460	2983×1866×3156
	CSB-1321	Standard medium	1295	16-38	210	178	132-253	160	22460	2983×1866×3156
	CSB-1324	Standard coarse	1295	19-51	241	205	172-349	160	22460	2983×1866×3156
	CSB-1325	Standard super coarse	1295	25-51	259	220	236-358	160	22460	2983×1866×3156
	CSD-1306	Short head fine	1295	3-16	64	54	36-163	160	22590	2983×1866×3156
	CSD-1308	Short head medium	1295	6-16	89	76	82-163	160	22590	2983×1866×3156
	CSD-1310	Short head coarse	1295	8-25	105	89	109-227	160	22590	2983×1866×3156
	CSD-1313	Short head super coarse	1295	16-25	133	113	209-236	160	22590	2983×1866×3156
5.5’FT	CSB-1620	Standard fine	1676	16-38	209	178	181-327	250	43270	3941×2954×3771
	CSB-1624	Standard medium	1676	22-51	241	205	258-417	250	43270	3941×2954×3771
	CSB-1626	Standard coarse	1676	25-64	269	228	299-635	250	43270	3941×2954×3771
	CSB-1636	Standard super coarse	1676	38-64	368	313	431-630	250	43270	3941×2954×3771
	CSD-1607	Short head fine	1676	5-13	70	60	90-209	250	43870	3941×2954×3771
	CSD-1608	Short head medium	1676	6-19	89	76	136-281	250	43870	3941×2954×3771
	CSD-1613	Short head coarse	1676	10-25	133	113	190-336	250	43870	3941×2954×3771
	CSD-1614	Short head super coarse	1676	13-25	133	113	253-336	250	43870	3941×2954×3771
7’FT	CSB-2127	Standard fine	2134	19-38	278	236	544-1034	400	86730	4613×3302×4638
	CSB-2133	Standard medium	2134	25-51	334	284	862-1424	400	86730	4613×3302×4638
	CSB-2136	Standard coarse	2134	31-64	369	314	1125-1814	400	86730	4613×3302×4638
	CSB-2146	Standard super coarse	2134	38-64	460	391	1252-1941	400	86730	4613×3302×4638
	CSD-2110	Short head fine	2134	5-16	105	89	218-463	400	89500	4613×3302×4638
	CSD-2113	Short head medium	2134	10-19	133	113	404-580	400	89500	4613×3302×4638
	CSD-2117	Short head coarse	2134	13-25	178	151	517-680	400	89500	4613×3302×4638
	CSD-2120	Short head super coarse	2134	16-25	203	172	580-744	400	89500	4613×3302×4638

Model	Max. Feeding Sizes (mm)	Adjustable Range of Output Size(mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)
PYB600	65	12-25	10-25	30	5
PYD600	35	3-13	5-20	30	5.5
PYB900	115	15-50	50-90	55	11.2
PYZ900	60	5-20	20-65	55	11.2
PYD900	45	3-13	15-50	55	11.3
PYB1200	145	20-50	110-168	110	24.7
PYZ1200	100	8-25	42-135	110	25
PYD1200	50	3-15	18-105	110	25.6
PYB1750	215	25-60	280-480	160	50.3
PYZ1750	185	10-30	115-320	160	50.3
PYD1750	85	5-15	75-230	160	50.4
PYB2200	300	30-60	490-800	260-280	80
PYZ2200	230	10-30	200-580	260-280	80
PYD2200	100	5-15	120-340	260-280	81.4
