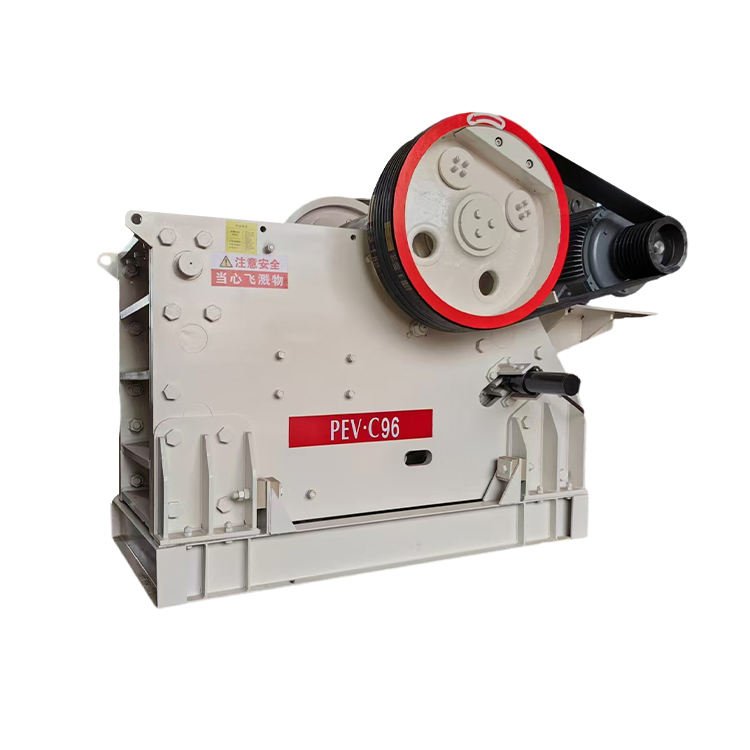

European Version Jaw Crusher
Next-generation primary jaw crusher featuring a deep V-shaped crushing chamber for exceptional throughput and feed capacity. Engineered for quarries, mining, and large-scale aggregate production.
What is European Version Jaw Crusher?
European Version Jaw Crusher adopts an advanced V-type crushing chamber design that is deeper and wider than traditional PE series jaw crushers. This innovative geometry allows larger feed sizes and significantly increases crushing efficiency.
The optimized nip angle and stroke ensure better material bite and higher throughput. The heavy-duty welded frame and integrated motor base provide superior structural rigidity and reduce installation footprint.
Widely used as the primary crusher in stone crushing plants, sand and gravel production lines, and ore processing plants for granite, basalt, limestone, and other hard materials.
- Deep V-type chamber for larger feed size
- Welded frame with integrated motor base
- Hydraulic wedge adjustment system
- High manganese steel jaw plates
Why Choose European Version Jaw Crusher?
Our European Version Jaw Crusher is engineered for reliability, efficiency, and superior output quality in demanding crushing applications.
Larger Feed Capacity
The deep V-type chamber increases effective feed opening by 15-20%, allowing larger raw materials to be processed without pre-screening.
Higher Crushing Efficiency
Optimized nip angle and longer stroke create better material compression, improving throughput by up to 25% compared to conventional designs.
Faster CSS Adjustment
Hydraulic wedge system allows closed-side setting adjustment in minutes without stopping the crusher, maximizing production uptime.
Lower Operating Cost
Integrated motor base eliminates alignment issues. Heavy-duty bearings and labyrinth seals extend maintenance intervals.
Product Features
Built with advanced engineering and high-quality components to maximize productivity and minimize downtime.
Deep V Crushing Chamber
The asymmetric V-shaped chamber maximizes material bite angle and increases effective crushing stroke for higher capacity.
Welded Steel Frame
Rigidity-optimized welded structure absorbs vibration and maintains precise alignment between jaw plates under peak loads.
Hydraulic CSS Adjustment
Wedge block mechanism controlled by hydraulic cylinders enables safe, fast gap adjustment from the control panel.
Auto-Lubrication System
Centralized automatic lubrication ensures proper grease delivery to all bearing points, reducing wear and preventing failures.

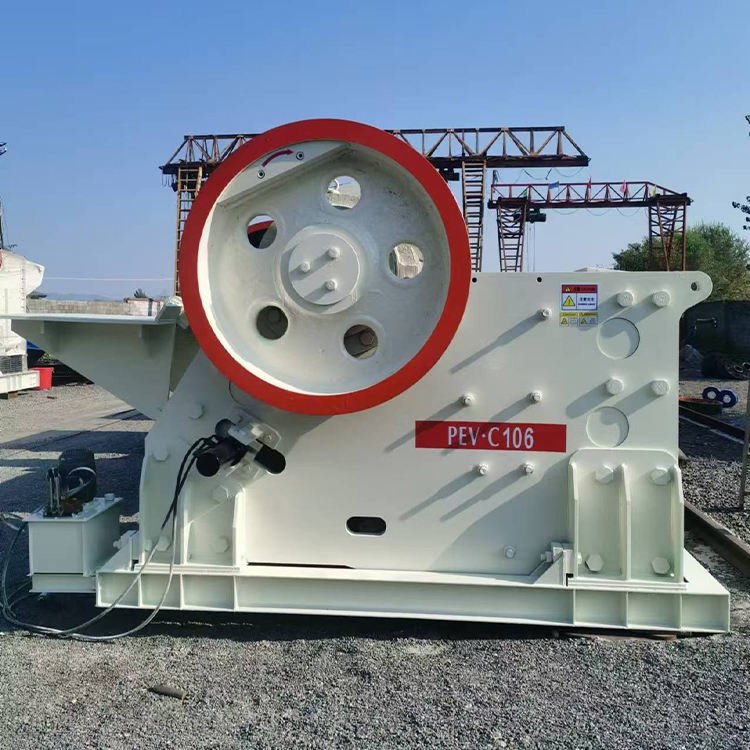

Working Principle
The European Version Jaw Crusher uses mechanical force to break down large rocks into smaller aggregate pieces through a precise crushing process.
- Raw material is fed into the deep V-shaped crushing chamber from the top.
- The movable jaw plate reciprocates driven by the eccentric shaft through toggle plates.
- Material is crushed between the fixed and movable jaw plates through compression and shear forces.
- Crushed material discharges from the bottom outlet when its size is smaller than the closed-side setting.
- The hydraulic system maintains consistent CSS even as wear occurs, ensuring stable product gradation.
Feed opening and capacity vary with material hardness and moisture. Contact us for customized configurations.
Technical Specifications
Choose the right model for your production needs. Contact us for customized crushing solutions.
| Model | Feed Opening (mm) | Max Feed (mm) | Capacity (t/h) | Power (kW) |
|---|---|---|---|---|
| MYC-JC-760×1100 | 760×1100 | 620 | 150-350 | 110-132 |
| MYC-JC-840×1100 | 840×1100 | 720 | 200-500 | 132-160 |
| MYC-JC-1100×1200 | 1100×1200 | 930 | 300-650 | 160-200 |
| MYC-JC-1200×1500 | 1200×1500 | 1000 | 400-800 | 200-250 |
| MYC-JC-1500×1800 | 1500×1800 | 1200 | 500-1000 | 250-315 |
| MYC-JC-1600×2100 | 1600×2100 | 1350 | 600-1200 | 315-400 |
Applications
Our European Version Jaw Crushers serve a wide range of primary crushing duties across mining, construction, and recycling industries.
Quarry & Mining
Primary crushing of granite, basalt, limestone and other hard rock at quarry and mine sites.
Construction Aggregate
Produces well-shaped coarse aggregate for concrete, asphalt and road base.
Ore Processing
First-stage comminution in metal ore beneficiation plants.
Road & Railway
Supplies graded stone for highway, railway and infrastructure foundations.
Cement & Chemical
Crushes limestone, gypsum and other raw materials for cement and chemical plants.
Recycling & Demolition
Processes concrete and construction debris for reusable aggregate.
