Symons Cone Crushers Complete Series Analysis: CS75/CS110/CS160/CS220 Models Comparison & Buying Guide

1. Introduction to Symons Cone Crushers: Industry Significance and MINGYUAN’s Position

1.1 Overview of Symons Cone Crusher Technology

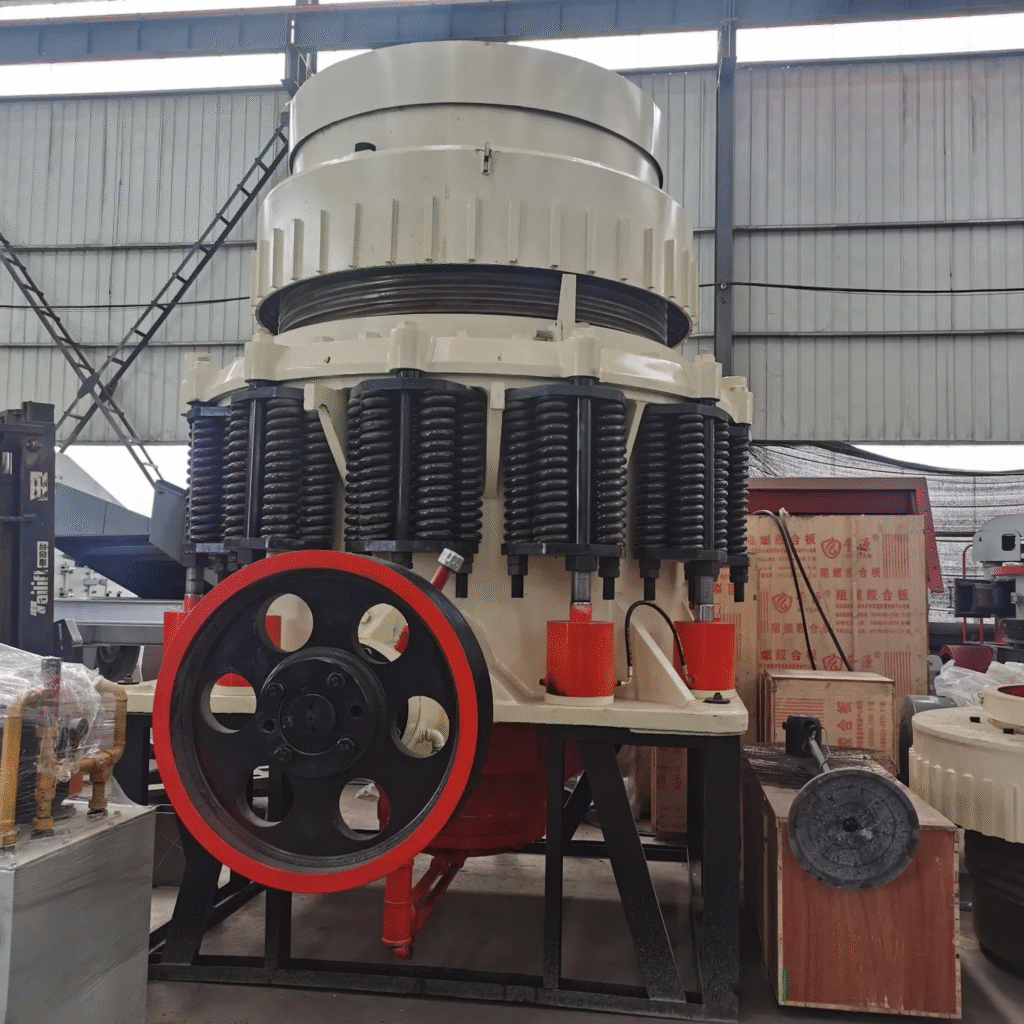

Symons cone crusher is a cornerstone of modern crushing technology, renowned for its efficiency in medium and fine crushing applications across mining, construction, and aggregate production. At its core, the Symons cone crusher operates on the principle of spring cone crusher mechanics, integrating a robust spring protection system with the innovative laminated crushing principle. This design ensures that materials are crushed through mutual extrusion within the crushing cavity, resulting in uniform particle size and minimal wear on components. As a leading cone crusher manufacturer, MINGYUAN has refined this technology over decades, producing the CS series—including CS75, CS110, CS160, and CS220 models—that set new standards for reliability and performance. These cone crushers for sale are engineered to meet the diverse needs of global clients, combining time-tested Symons design with modern enhancements to deliver consistent results in even the most demanding environments.

1.2 Key Role in Modern Crushing Plants

In today’s cone crusher plants, Symons cone crushers serve as the critical link between primary crushing (typically handled by jaw crushers) and final product sizing. Their ability to process high-hardness materials—from granite to iron ore—makes them indispensable in large-scale mining operations and infrastructure projects. MINGYUAN’s CS series, in particular, is designed to seamlessly integrate into both fixed and mobile configurations, adapting to dynamic project requirements. The rise of mobile cone crusher solutions has further expanded their utility, allowing on-site processing of materials in remote locations or construction sites with limited space. Among these, crawler mobile cone crushers offer enhanced mobility and flexibility, enabling operators to move between job sites with minimal downtime. As the industry evolves, Symons cone crushers remain a vital component, driving efficiency and productivity in cone crusher plants worldwide.

2. Technical Parameters Comparison: CS75, CS110, CS160, CS220 Symons Cone Crushers

2.1 Core Specifications of Each Model

MINGYUAN’s CS series Symons cone crushers are tailored to different production scales, with technical parameters that reflect their unique capabilities. The CS75, the smallest in the range, features a motor power of 75 kW, a dynamic cone diameter of 900 mm, and a processing capacity of 27–163 t/h, making it ideal for small to medium-sized quarries. The CS110 steps up with 110 kW power, a 1200 mm dynamic cone, and 110–250 t/h capacity, suitable for mid-scale mining operations. For larger projects, the CS160 delivers 160 kW power, a 1300 mm dynamic cone, and 132–253 t/h capacity, while the CS220, the flagship model, boasts 220 kW power, a 1400 mm dynamic cone, and up to 530 t/h capacity for high-volume crushing tasks.

Each model offers multiple cavity types—standard (medium crushing), medium (medium-fine crushing), and short-head (fine crushing)—allowing operators to adjust output size by replacing lining plates. The Symons cone crusher’s spring system provides critical overload protection: when foreign objects enter the cavity, the springs compress to expand the discharge port, preventing damage to internal components. This design, a hallmark of spring cone crusher technology, ensures operational reliability even with variable feed materials. As expected, cone crusher price correlates with size and capacity, with the CS75 offering an entry point for budget-conscious buyers and the CS220 catering to large-scale industrial needs.

2.2 Performance Advantages of MINGYUAN’s CS Series

MINGYUAN has enhanced the traditional Symons cone crusher design with several key improvements. The optimized laminated crushing cavity increases the number of interparticle collisions, resulting in cubic-shaped products with minimal needle shape content—critical for high-quality construction aggregates. Unlike basic spring cone crushers, MINGYUAN’s CS series integrates a hydraulic adjustment and chamber clearing system, allowing operators to fine-tune the discharge port in minutes and clear blockages quickly, reducing downtime by up to 80% compared to manual methods.

High-wear resistant liners, crafted from Mn18Cr2高锰钢, extend service life by 50% compared to standard materials, lowering maintenance costs. The series is also compatible with jaw cone crusher plants, forming efficient “jaw + cone” crushing circuits that maximize throughput. For example, pairing a jaw crusher with the CS160 creates a system capable of processing 150–200 t/h of granite, ideal for ballast crusher applications in railway construction. By combining the reliability of spring cone crusher technology with hydraulic convenience, MINGYUAN’s CS series bridges the gap between traditional and modern hydraulic cone crusher performance.

3. Application Scenarios: Matching MINGYUAN Symons Cone Crushers to Industry Needs

3.1 Metal Ore and Mining Industry Applications

In metal ore processing, Symons cone crushers excel at handling high-hardness materials like iron ore, copper ore, and gold ore. The CS160 and CS220 models are particularly well-suited for these tasks, thanks to their robust construction and high capacity. For instance, a gold mine in Western Australia uses the CS220 in its crushing circuit, processing 450 t/h of ore with a feed size of up to 314 mm. The spring cone crusher’s overload protection system has proven invaluable here, automatically expelling metal debris that could damage the machine, ensuring continuous operation.

In large cone crusher plants, the CS series often serves as the secondary or tertiary crusher, following primary jaw crushing. A copper mine in Chile integrated the CS160 into its circuit, achieving a crushing ratio of 5–8 and reducing ore size from 200 mm to 25 mm, ready for grinding. The uniform particle size produced by the Symons cone crusher improves downstream processing efficiency, increasing metal recovery rates by 3–5%. These applications highlight why mining operators trust MINGYUAN’s Symons cone crushers for their durability and consistent performance.

3.2 Construction Aggregates and Ballast Production

For construction aggregates, the CS75 and CS110 models are workhorses, producing high-quality sand and gravel for concrete and road construction. A limestone quarry in Germany uses the CS75 with a short-head cavity to produce 27–90 t/h of 6–22 mm aggregates, with针片状 content below 10%, meeting European standards for high-strength concrete. The CS110, deployed in a granite quarry in China, processes 110–250 t/h of material into 16–38 mm aggregates for highway base layers, demonstrating its versatility with hard rock.

As a ballast crusher, the CS series delivers the uniform particle size required for railway tracks. A major railway project in India selected the CS160 to produce 132–253 t/h of 20–50 mm ballast, ensuring stable track foundations. For projects requiring on-site processing, MINGYUAN’s crawler mobile cone crusher—equipped with the CS110 or CS160—offers unmatched flexibility. A construction waste recycling site in Singapore uses this mobile unit to crush concrete debris into reusable aggregates, eliminating transportation costs and reducing environmental impact. The mobile cone crusher’s compact design and track-mounted mobility allow it to operate in tight urban spaces, expanding the Symons cone crusher’s application range.

3.3 Integration with Jaw Cone Crusher Plants

MINGYUAN’s Symons cone crushers are designed to integrate seamlessly with jaw crushers in jaw cone crusher plants, creating efficient two-stage or three-stage crushing flows. A typical configuration includes a jaw crusher for primary crushing (reducing material to 150–300 mm), followed by a Symons cone crusher for secondary crushing (to 20–80 mm), and optionally a tertiary cone crusher for fine sizing. This setup maximizes throughput while minimizing energy consumption.

A sand and gravel plant in Brazil exemplifies this integration: a jaw crusher feeds 300 mm limestone into a CS160, which reduces it to 40 mm, followed by screening to produce 0–5 mm, 5–10 mm, and 10–20 mm aggregates. The plant achieves 92% product yield, with the cone crusher plant operating 20 hours/day with minimal downtime. MINGYUAN’s cone crusher manufacturer expertise ensures custom plant design, with engineers tailoring layouts to site conditions, material characteristics, and production goals. Whether for fixed or mobile operations, this integration highlights the Symons cone crusher’s role as a cornerstone of modern aggregate production.

4. MINGYUAN vs. Competitors: Technical and Market Advantages

4.1 Comparison with International Brands (Metso, Sandvik, Terex)

International brands like Metso and Sandvik dominate the high-end hydraulic cone crusher market with advanced automation and intelligent controls. Sandvik’s CH series, for example, features hydraulic adjustment and remote monitoring, allowing precise discharge port control and real-time performance tracking. Metso’s HP series emphasizes energy efficiency, with optimized power transmission that reduces power consumption by 10–15% compared to traditional models. However, these technologies come at a premium: a Sandvik CH660 costs 30–40% more than MINGYUAN’s CS220, placing them out of reach for many small to medium enterprises.

MINGYUAN’s Symons cone crusher, while a spring cone crusher at its core, offers a pragmatic balance of performance and cost. Unlike fully hydraulic models, it has fewer complex components, lowering maintenance requirements and spare parts costs. For instance, MINGYUAN’s hydraulic chamber clearing system costs 50% less to repair than Sandvik’s integrated hydraulic unit. Terex’s mobile cone crushers, such as the Powerscreen series, offer similar mobility to MINGYUAN’s crawler mobile cone crusher but at a 25% higher price point, making MINGYUAN a more economical choice for projects with budget constraints.

4.2 Comparison with Domestic Brands (Liming, Hongxing, Shaorui)

Domestic competitors like Liming and Hongxing offer cone crushers at competitive prices, but MINGYUAN distinguishes itself through superior craftsmanship and after-sales support. Liming’s PYS series, while affordable, uses standard manganese steel liners that wear out 30% faster than MINGYUAN’s high-chromium alloys. Hongxing’s HPT series focuses on hydraulic technology but lacks the Symons design’s proven reliability in heavy-duty mining applications. Shaorui’s cone crushers, though technically sound, have limited cavity options, restricting versatility.

MINGYUAN’s 30+ years of Symons cone crusher manufacturing experience ensures meticulous attention to detail, from precision machining of the eccentric shaft to rigorous testing of each unit before delivery. Its domestic service network, with 36 support centers, guarantees 24-hour response times for technical issues, a critical advantage over brands with slower service. For cone crusher for sale, MINGYUAN offers transparent pricing and flexible financing, making it easier for buyers to invest in quality equipment. In cone crusher plants, MINGYUAN’s ability to customize cavity types and integrate with existing systems further sets it apart from one-size-fits-all domestic competitors.

5. Buying Guide: Choosing the Right MINGYUAN Cone Crusher

5.1 Key Factors in Model Selection

Selecting the right Symons cone crusher depends on three primary factors: material hardness, required capacity, and output size. For soft to medium-hard materials like limestone, the CS75 or CS110 suffices; for granite or iron ore (high hardness), the CS160 or CS220 is necessary. Capacity needs should align with project scale: a small quarry producing 50,000 t/year may opt for the CS75, while a large mine requiring 2 million t/year needs the CS220.

Cavity type selection is equally important. Standard cavities are best for medium crushing (19–50 mm discharge), short-head for fine crushing (6–22 mm), and medium for in-between sizes. Operators should also consider integration with existing equipment: a jaw cone crusher plant may require a specific cone size to match jaw crusher output. For mobile applications, the crawler mobile cone crusher, available with CS110 or CS160, offers on-site mobility without sacrificing capacity. By evaluating these factors, buyers can ensure they select the optimal cone crusher for sale that balances performance and cost.

5.2 Cone Crusher Price and Investment Return Analysis

MINGYUAN’s cone crusher price ranges from $20,000 (CS75) to $150,000 (CS220), depending on configuration and optional features like hydraulic adjustment or remote monitoring. While initial investment is higher than basic spring cone crushers, the CS series’ energy efficiency (0.8 kWh/t for CS75) and low maintenance costs deliver strong ROI. For example, a CS160 in a granite quarry processes 150 t/h at $0.10/kWh, costing $12/h in energy; with 2,000 operating hours/year, annual energy costs are $24,000, 15% lower than comparable hydraulic cone crushers.

Wear parts, a major ongoing expense, cost 8–12% of the equipment price annually for MINGYUAN models, versus 15–20% for international brands. Over a 5-year lifespan, this translates to $30,000–$50,000 in savings. MINGYUAN also offers trade-in programs for old equipment, further reducing total cost of ownership. For buyers prioritizing long-term value, MINGYUAN’s cone crusher for sale represents a smart investment in reliable, efficient crushing technology.

5.3 Mobile and Fixed Cone Crusher Plant Solutions

MINGYUAN provides tailored solutions for both fixed and mobile operations. Fixed cone crusher plants are ideal for permanent quarries or mines, with pre-engineered layouts that minimize installation time. A typical fixed plant includes a vibrating feeder, jaw crusher, Symons cone crusher, vibrating screen, and conveyor system, all integrated for seamless operation. MINGYUAN’s engineers design plants to maximize space efficiency, with the CS220-based plant occupying 30% less area than conventional layouts.

For projects requiring mobility—such as construction waste recycling or remote mining—the crawler mobile cone crusher is unmatched. Mounted on a tracked chassis, it can be transported to site and operational within hours, eliminating the need for foundation construction. The mobile unit includes a built-in screen and conveyor, producing finished aggregates directly on-site. MINGYUAN’s mobile cone crusher options range from 100–500 t/h capacity, with the CS160-based model being the most popular for mid-scale mobile applications. By offering both fixed and mobile solutions, MINGYUAN ensures clients have the right cone crusher plant for their specific needs.

Technical Specifictions of Symons cone crusher

6. Maintenance and After-Sales Service: Ensuring Long-Term Efficiency

6.1 Routine Maintenance of Symons Cone Crushers

Proper maintenance is critical to maximizing the Symons cone crusher’s lifespan. Daily checks should include inspecting the spring tension, lubricating the eccentric shaft, and monitoring bearing temperatures (ideally below 60°C). Weekly tasks involve checking liner wear and adjusting the discharge port as needed. Monthly maintenance includes replacing the lubricating oil and inspecting the hydraulic system for leaks.

For key components: liners should be replaced when worn to 50% of original thickness to maintain crushing efficiency; bearings should be checked for play and replaced if excessive vibration occurs; the spring system should be tested quarterly to ensure proper overload response. MINGYUAN’s spring cone crusher design simplifies maintenance, with all critical parts accessible from the top or side of the machine. The hydraulic cone crusher components, such as the adjustment cylinder, require minimal servicing beyond regular oil changes, making upkeep straightforward even for operators with limited technical expertise.

6.2 MINGYUAN’s Comprehensive After-Sales Support

As a reputable cone crusher manufacturer, MINGYUAN stands behind its products with industry-leading after-sales service. All cone crushers for sale come with a 12-month warranty covering parts and labor, with extended warranties available for critical components. MINGYUAN’s technical team provides on-site installation guidance, ensuring proper setup and calibration for optimal performance.

The company’s spare parts network guarantees 48-hour delivery of critical components like liners and bearings, minimizing downtime. Remote monitoring systems, optional on CS160/CS220 models, allow MINGYUAN engineers to diagnose issues in real-time, often resolving problems without an on-site visit. For clients new to cone crusher operation, MINGYUAN offers operator training programs, covering maintenance, safety, and performance optimization. This commitment to customer support reinforces why MINGYUAN is a trusted partner for cone crusher plant operators worldwide.

7. Conclusion: Why Choose MINGYUAN Symons Cone Crushers

MINGYUAN’s Symons cone crusher CS series—CS75, CS110, CS160, CS220—represents the pinnacle of spring cone crusher technology, enhanced with modern hydraulic features for efficiency and reliability. From small quarries to large-scale mines, these cone crushers for sale deliver consistent performance across metal ore, construction aggregates, and ballast production applications. Compared to international brands, they offer superior value with lower upfront and maintenance costs; versus domestic competitors, they provide better craftsmanship and responsive after-sales support.

Whether integrated into a fixed cone crusher plant or deployed as a crawler mobile cone crusher, MINGYUAN’s CS series adapts to diverse project needs, ensuring optimal productivity and product quality. With a focus on customer satisfaction, MINGYUAN provides not just equipment, but comprehensive solutions—from model selection to ongoing maintenance—that drive success for mining and construction clients. For anyone in the market for a cone crusher manufacturer that combines technical expertise, competitive pricing, and reliable service, MINGYUAN’s Symons cone crushers are the clear choice. Contact MINGYUAN today to discuss your specific needs and discover how the CS series can elevate your crushing operation.
