Superfine Limestone Powder Ball Mill
A ball mill engineered for superfine limestone – reaches 200 to 2500 mesh with a classifier loop for premium filler and coating grades.
General Introduction

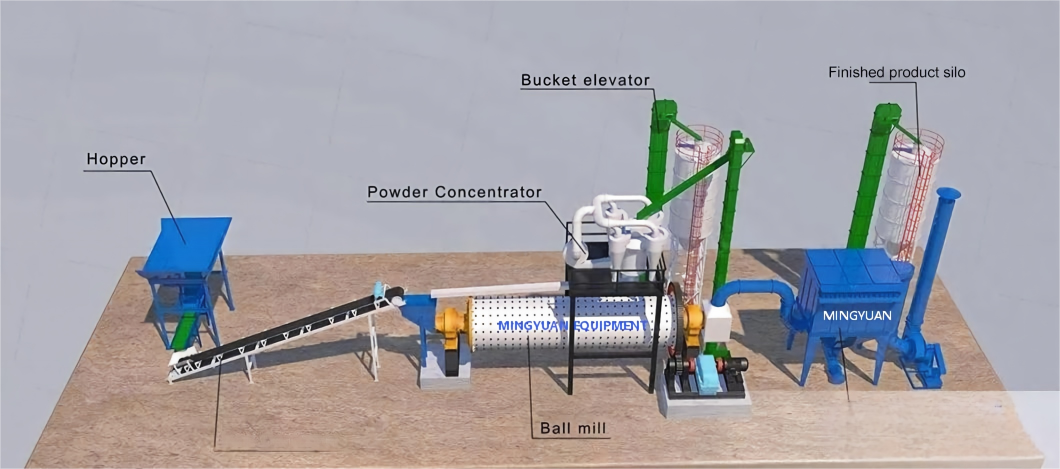

The superfine limestone powder ball mill is a long, carefully loaded ball mill paired with a high-efficiency classifier to make ultrafine CaCO3 and limestone. Smaller grinding media and a longer residence time liberate fine particles without over-grinding.
The classifier returns coarse instantly while collecting the 200-2500 mesh fraction, keeping the product narrow and bright. Temperature is controlled so the powder stays free-flowing and white.
It targets premium filler and coating grades where fineness and consistency decide the price the powder can command.
- 200-2500 mesh superfine limestone
- Small-media, long-mill design
- Classifier loop holds narrow distribution
- Bright, free-flowing product
Application Materials
Materials and industries our Superfine Limestone Powder Ball Mill serves worldwide.
Premium Filler
Ultrafine CaCO3 for plastics and PVC.
Paper Coating
Bright coating-grade limestone.
Paints
Fine extender for smooth films.
Rubber
Reinforcing superfine filler.
Sealants
Functional calcium loading.
Cosmetics
Approved fine mineral powder.
Features & Highlights
Engineered for reliable, low-cost operation in demanding duty.
Small-Media Load
Fine balls liberate ultrafine without over-grind.
High-Eff Classifier
Cuts to 2500 mesh and recirculates oversize.
Temp Control
Cooling keeps powder white and free-flowing.
Fine Liners
Smooth liners protect the narrow size spread.
Technical Parameters
Choose the model that fits your capacity. Contact us for custom configurations.
| Model | Drum Size (mm) | Capacity (t/h) | Fineness (mesh) | Power (kW) | Weight (t) |
|---|---|---|---|---|---|
| MYC-SLBM-1200 | 1200×4500 | 1-3 | 200-2500 | 37 | 11 |
| MYC-SLBM-1500 | 1500×5700 | 2.5-6 | 200-2500 | 75 | 18 |
| MYC-SLBM-1830 | 1830×7000 | 5-12 | 200-2500 | 132 | 32 |
| MYC-SLBM-2100 | 2100×8000 | 10-18 | 200-2500 | 220 | 52 |
Successful Project Cases
Proven Superfine Limestone Powder Ball Mill installations delivered by Mingyuan Machinery.
South Korea · Limestone
MYC-SLBM-1500 milling 5 t/h to 1500 mesh for a paper-coating plant.
Italy · CaCO3
MYC-SLBM-1830 producing 11 t/h 2000-mesh filler for PVC.
Malaysia · Limestone
MYC-SLBM-1200 grinding 2.5 t/h for cosmetic-grade powder.
Get Your Free Quote Today
Ready to discuss your Superfine Limestone Powder Ball Mill project? Contact Mingyuan Machinery now for price, specifications, and a tailored solution.
