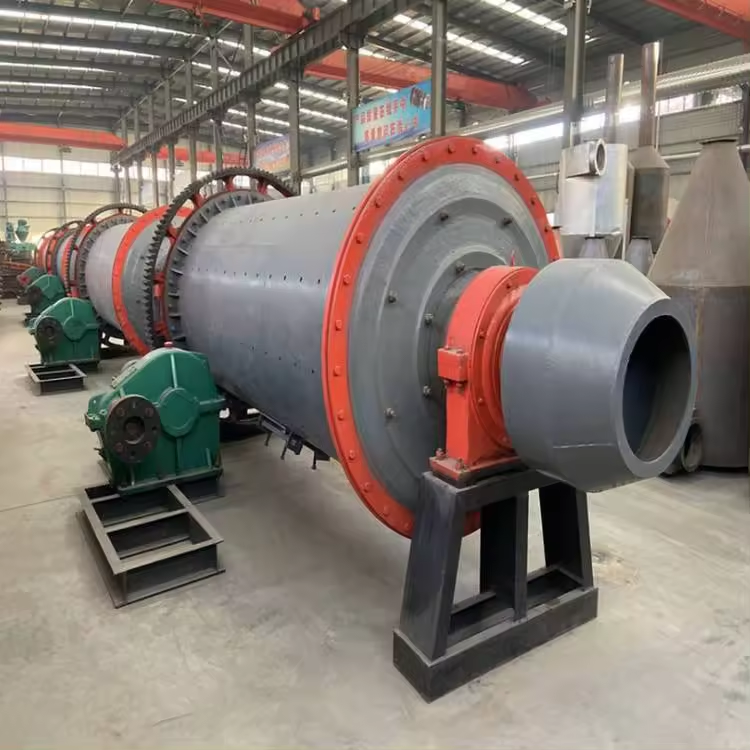

Steel Slag Recycling Machine
A heavy-duty Steel Slag Recycling Machine that grinds steel slag to liberate trapped metallic iron and produce fine slag powder for cement and road base – turning a waste stream into saleable product.
General Introduction
Steel slag is the calcium-iron silicate by-product left after steelmaking, and it still contains 10-25% metallic iron trapped in a hard, abrasive matrix. The Steel Slag Recycling Machine tumbles the crushed slag with grinding media so the matrix fractures and the iron particles are freed for recovery.
Discharged slurry or dry powder then goes to magnetic separation, where the liberated iron is pulled out and the remaining non-metallic fraction is collected as ground slag – a pozzolanic powder suitable for cement, concrete admixture, and road construction.
Because slag is both hard and abrasive, the mill uses thick shells and Mn-steel liners built for continuous, high-load duty, letting steel plants close the loop on their slag instead of paying to dump it.
- Liberates trapped metallic iron for recovery
- Produces ground slag powder (GGBS-like) for cement
- Thick shell and Mn-steel liners for abrasive duty
- Dry or wet grinding, pairs with magnetic separators
Application Materials
Materials and industries our Steel Slag Recycling Machine serves worldwide.
Steel Slag
Process BOF and EAF slag from steel plants.
Iron Recovery
Recover metallic iron ahead of magnetic separation.
Ground Slag Powder
Make GGBS-like powder for cement and concrete.
Road Base
Supply stabilised slag aggregate for pavements.
Soil Stabilisation
Use lime-rich slag to treat weak subgrades.
Fertiliser
Sell Ca/Si/Fe-rich slag as a soil amendment.
Features & Highlights
Engineered for reliable, low-cost operation in demanding duty.
Heavy Cylinder
Thick plate shell and welded ends shrug off abrasive slag load.

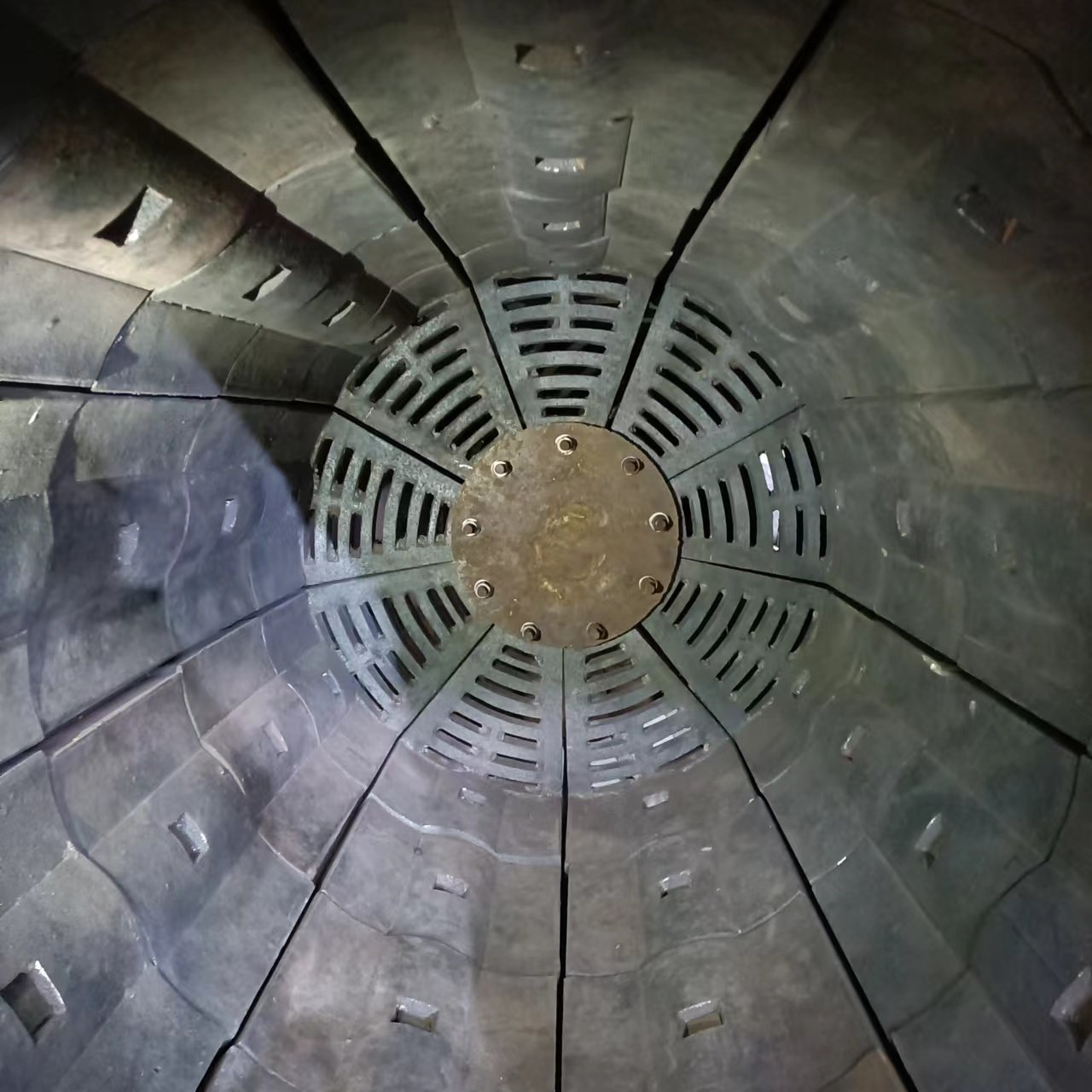

Mn-Steel Liners
Bolt-in liners you flip or replace as wear dictates.
Closed-Circuit Ready
Pairs with magnetic separator and classifier for clean split.
Trunnion Bearings
Large flooded bearings carry heavy, 24/7 slag duty.
Technical Parameters
Choose the model that fits your capacity. Contact us for custom configurations.
| Model | Drum Size (mm) | Capacity (t/h) | Feed (mm) | Power (kW) | Weight (t) |
|---|---|---|---|---|---|
| MYC-SSBM-900 | 900×1800 | 5-8 | <25 | 37 | 5.0 |
| MYC-SSBM-1200 | 1200×3000 | 8-15 | <25 | 55 | 11 |
| MYC-SSBM-1500 | 1500×3600 | 15-22 | <25 | 110 | 18 |
| MYC-SSBM-1830 | 1830×4500 | 22-32 | <25 | 185 | 30 |
| MYC-SSBM-2400 | 2400×5000 | 32-45 | <25 | 380 | 58 |
Successful Project Cases
Proven Steel Slag Recycling Machine installations delivered by Mingyuan Machinery.
China · Steel slag
MYC-SSBM-1830 grinding 28 t/h BOF slag, recovering metallic iron at a steel group.
India · Steel slag
MYC-SSBM-1500 producing 20 t/h ground slag powder for a cement blender.
Turkey · EAF slag
MYC-SSBM-1200 liberating iron from electric-arc slag for a mini-mill.
Get Your Free Quote Today
Ready to discuss your Steel Slag Recycling Machine project? Contact Mingyuan Machinery now for price, specifications, and a tailored solution.
