Spring Cone Crusher
Reliable secondary & tertiary crushing equipment for mining and aggregate production. High crushing ratio, low operating cost, and spring overload protection for maximum uptime.
What is Spring Cone Crusher?

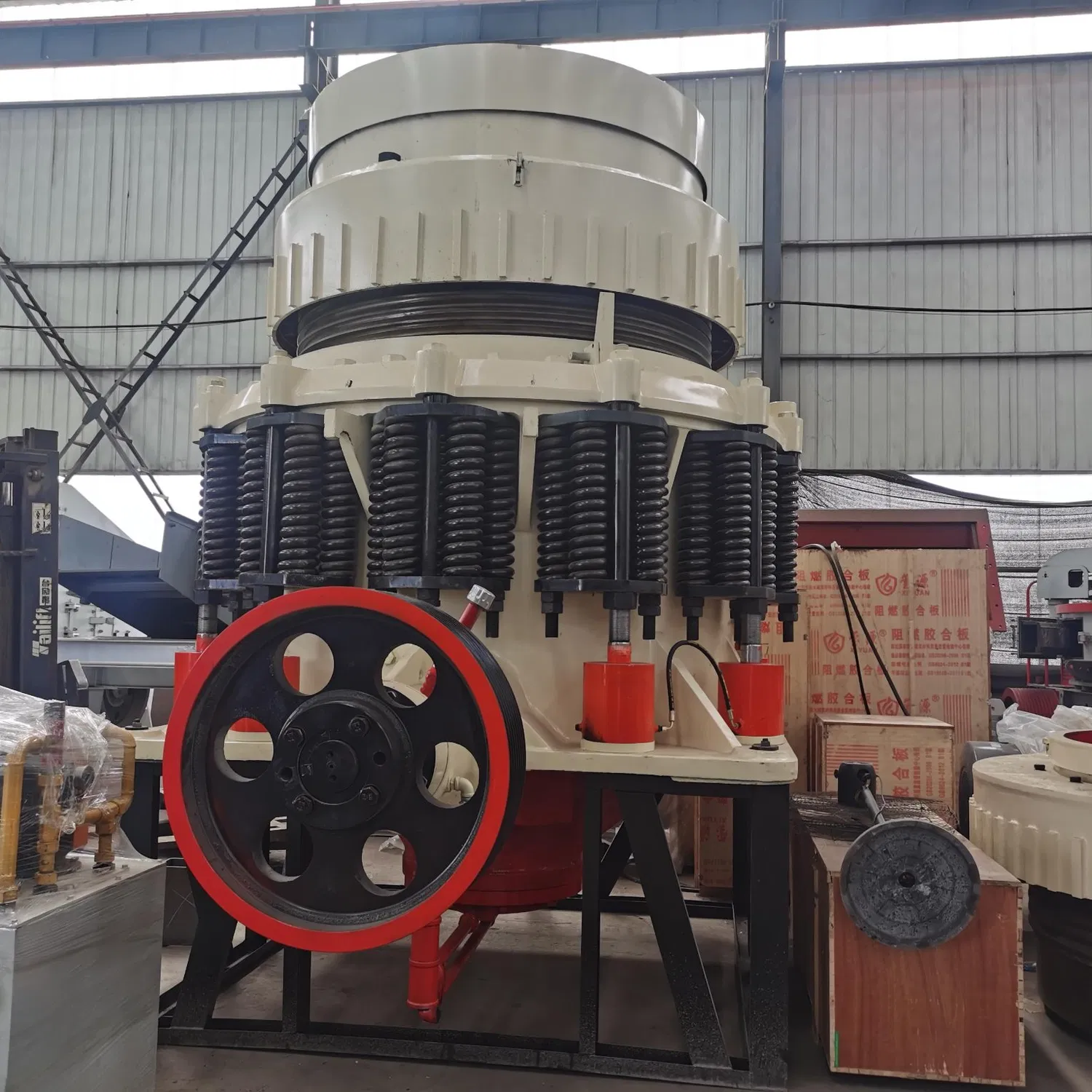

The spring cone crusher is a classic cone crushing machine that uses the gyratory motion of an eccentrically rotating mantle to squeeze and crush material between the mantle and the concave (bowl liner). It was one of the first cone crushers invented and remains widely trusted for its simple, robust design.
Springs installed around the main frame provide overload protection: when uncrushable material such as tramp iron enters the chamber, the springs compress, the crushing cone rises, and the foreign material passes through — then the machine automatically resets, avoiding damage to the crusher.
It is widely used in mining, metallurgy, construction, road and railway building, and chemical industries for crushing hard and medium-hard ores and rocks such as iron ore, copper ore, limestone, quartz, and granite.
- High crushing ratio with low energy consumption
- Simple, proven structure — low maintenance
- Spring overload protection with auto-reset
- Adjustable discharge opening for flexible output size
Why Choose Spring Cone Crusher?
Engineered for tough ores and demanding schedules — dependable performance you can build a production line around.
High Crushing Ratio
Combined compression and bending forces give a high crushing ratio, producing uniform, well-shaped product with a low proportion of over-sized particles.
Durable Wear Parts
The mantle and concave are cast from high manganese steel, delivering excellent wear resistance and long service life even with very abrasive ores.
Low Operating Cost
Proven simple design, lower power consumption per ton, and easily replaceable wear liners keep total cost of ownership among the lowest in the market.
Versatile & Reliable
Available in Standard (PYB), Medium (PYZ) and Short-Head (PYD) cavity types, covering coarse, medium and fine crushing in one machine family.
Product Features
Robust construction and smart engineering details designed to maximize productivity and minimize downtime.
High Crushing Efficiency
Optimized crushing chamber geometry and high-speed gyratory motion deliver maximum output per kW of installed power.
Spring Overload Protection
Durable springs release and auto-reset when uncrushable materials enter the chamber, protecting the crusher from damage without stopping production.
Adjustable Discharge Opening
Fine output size is easily set by adjusting the position of the adjusting sleeve — no special tools or complex hydraulics required.
Easy Maintenance & Safety
Simple structure with quick liner replacement, a dry-oil or water-sealed dust-proof system, and safe, easy access for routine inspection.
Working Principle
The spring cone crusher crushes material between a fixed concave and a gyrating mantle using continuous squeezing and bending action.
- Material enters from the feed opening at the top of the machine.
- Rocks fall into the crushing chamber between the fixed concave (bowl liner) and the moving mantle.
- The mantle gyrates eccentrically, squeezing and bending the rocks against the concave.
- Rock fractures along natural fissures; crushed pieces fall down as the mantle swings away.
- Springs absorb tramp iron and overload; the finished product discharges through the adjustable bottom opening.
The discharge opening can be precisely adjusted to control the final product size — from coarse aggregate to fine sand.
Technical Specifications
Standard (PYB), Medium (PYZ) and Short-Head (PYD) cavity types for every stage of your crushing circuit. Contact us for customized solutions.
| Model | Cavity Type | Crushing Cone Dia. (mm) | Max Feed Size (mm) | Discharge Range (mm) | Capacity (t/h) | Power (kW) |
|---|---|---|---|---|---|---|
| PYB-600 | Standard | Φ600 | 75 | 12-25 | 12-25 | 30 |
| PYD-600 | Short Head | Φ600 | 35 | 3-13 | 12-23 | 30 |
| PYB-900 | Standard | Φ900 | 115 | 15-50 | 50-90 | 55 |
| PYZ-900 | Medium | Φ900 | 60 | 5-20 | 20-65 | 55 |
| PYD-900 | Short Head | Φ900 | 50 | 3-13 | 15-50 | 55 |
| PYB-1200 | Standard | Φ1200 | 145 | 20-50 | 110-168 | 110 |
| PYZ-1200 | Medium | Φ1200 | 100 | 8-25 | 42-135 | 110 |
| PYD-1200 | Short Head | Φ1200 | 50 | 3-15 | 18-105 | 110 |
| PYB-1750 | Standard | Φ1750 | 215 | 25-60 | 280-480 | 160 |
| PYZ-1750 | Medium | Φ1750 | 185 | 10-30 | 115-320 | 160 |
| PYD-1750 | Short Head | Φ1750 | 85 | 5-15 | 75-230 | 160 |
| PYD-2200 | Short Head | Φ2200 | 100 | 5-15 | 120-340 | 280 |
Applications
Trusted across industries wherever hard, abrasive material must be crushed to spec.
Mining & Ore Crushing
Secondary and tertiary crushing of iron ore, copper ore, gold ore and other hard minerals in mineral processing plants.
Construction Aggregate
Production of high-grade crushed stone for ready-mix concrete, asphalt, and building material manufacturing.
Highway & Railway
Crushing hard rock and gravel base material for highway, railway and bridge construction projects.
Artificial Sand Making
Fine (short-head) crushing stages produce excellent feed material for VSI sand makers in manufactured sand lines.
Cement & Chemical
Crushing limestone, clinker feed and chemical raw materials with reliable, dust-protected operation.
Hydro-power & Concrete
Supplying consistently graded aggregate for dam construction, hydro-power stations and large concrete pours.
