Spiral Sand Washing Machine
A long-tank spiral classifier that scrubs, lifts, and dewaters sand in one pass – removing clay, silt, and light impurities while raising product grade.
General Introduction
The spiral sand washing machine is a trough classifier with one or two rotating screw shafts. Feed slurry enters the tank; the slowly turning spirals agitate the bed, freeing clay and lightweight impurities, which overflow with the wastewater.
Clean, heavy sand settles to the bottom and is conveyed up the inclined tank by the spirals, where it is lifted clear of the water and drained – combining washing, grading, and dewatering in a single machine.

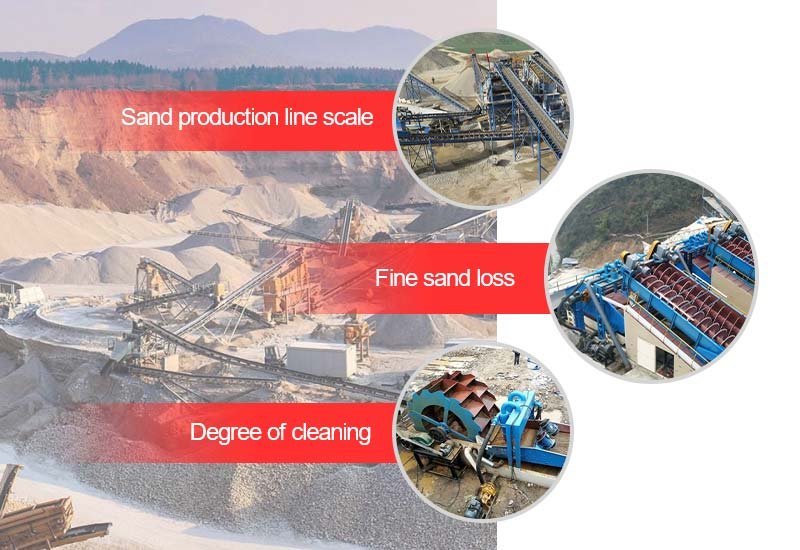

It is the workhorse behind sand and gravel plants, quarries, and concrete aggregate lines that need to strip sticky fines and raise the washed-sand grade.
- Washes, grades, and dewaters in one machine
- Removes clay, silt, and light impurities
- Single or double spiral for higher output
- Simple, low-maintenance trough design
Application Materials
Materials and industries our Spiral Sand Washing Machine serves worldwide.
Sand & Gravel
Wash and dewater natural sand and gravel.
Quarry Aggregate
Strip clay from crushed stone fines.
Concrete Sand
Raise sand grade for ready-mix plants.
River Sand
Clean dredged river sand for construction.
Silica Sand
Remove surface silt before drying.
Recycled Aggregate
Wash C&D fines for reuse.
Features & Highlights
Engineered for reliable, low-cost operation in demanding duty.

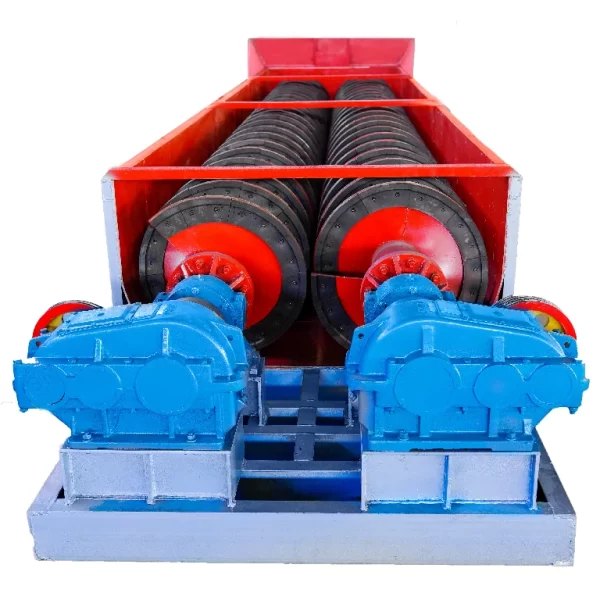

Twin Spiral Option
Double-spiral models nearly double throughput in the same tank.
Wear Liners
Replaceable trough and flight liners stand up to abrasive slurry.
Adjustable Weir
Overflow weir tuning controls how many fines are rejected.
Heavy Bearings
Sealed, grease-filled bearings survive wet, gritty duty.
Technical Parameters
Choose the model that fits your capacity. Contact us for custom configurations.
| Model | Screw Dia. (mm) | Tank Length (mm) | Capacity (t/h) | Power (kW) | Weight (t) |
|---|---|---|---|---|---|
| MYC-LSX-915 | 915 | 7585 | 100 | 11 | 6.2 |
| MYC-LSX-1115 | 1115 | 9782 | 175 | 15 | 9.8 |
| MYC-LSX-1500 | 1500 | 10500 | 250 | 22 | 16.5 |
| MYC-LSX-2000 | 2000 | 11500 | 350 | 37 | 28 |
Successful Project Cases
Proven Spiral Sand Washing Machine installations delivered by Mingyuan Machinery.
Philippines · River sand
Two MYC-LSX-1500 spirals washing 240 t/h river sand for a ready-mix supplier.
Kenya · Concrete sand
MYC-LSX-1115 raising sand grade at a quarry aggregate plant.
Peru · Silica sand
MYC-LSX-915 stripping surface silt before a drying line.
