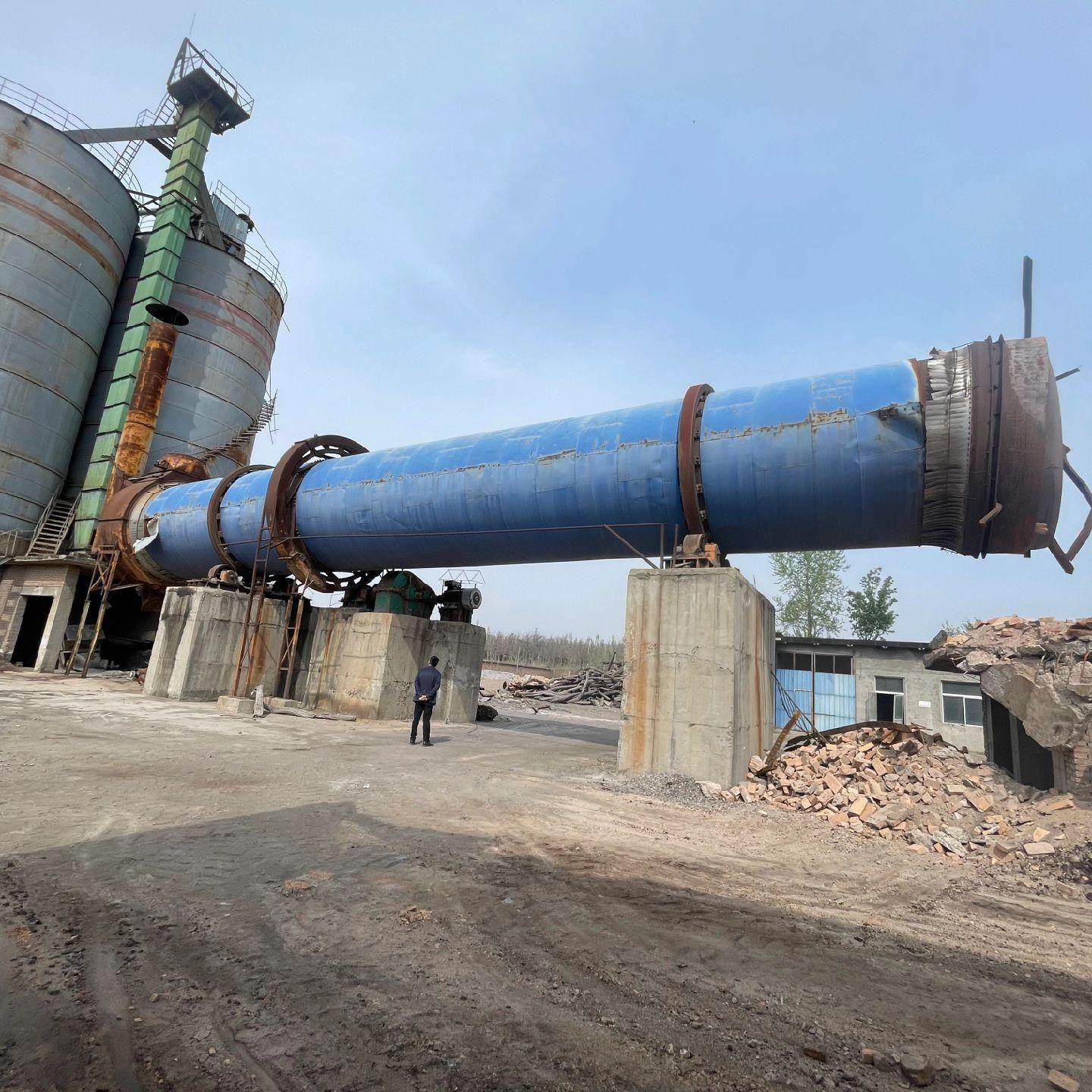

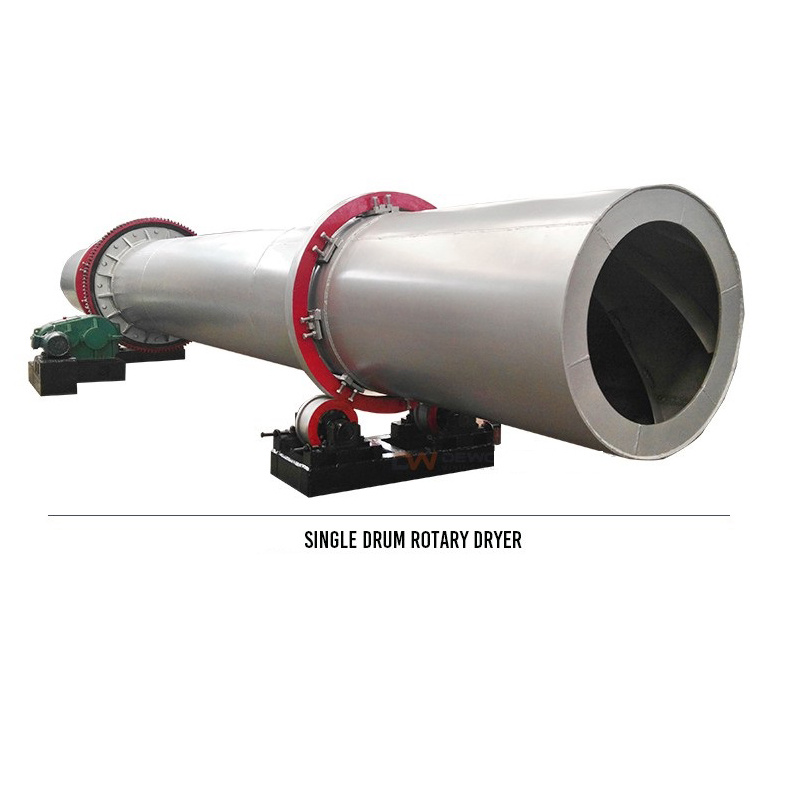

Single Pass Rotary Dryer
A direct-heat rotary dryer where wet material passes once through a rotating, inclined drum and meets a counter-flow hot air stream – the simplest, most robust solution for bulk minerals, sand, slag, and fertilizers.
General Introduction
A single pass rotary dryer is the classic, most reliable drying machine for free-flowing bulk solids. Material is fed into the upper end of a long, slightly inclined rotating drum while hot combustion gas travels through it – counter-flow or co-current – carrying away evaporated moisture in a single pass.
Inside the drum, lifter flights repeatedly lift and shower the material through the hot gas, giving intimate heat contact and uniform drying. The inclined design lets the dried product tumble out the lower end onto a discharge conveyor, ready for cooling, screening, or bagging.
Because there is only one pass, the layout is short, simple, and inexpensive to install – ideal for mineral concentrates, silica sand, coal, slag, and fertilizer where throughput and uptime matter more than the absolute lowest fuel use.
- One-pass drum, short footprint, low capital cost
- Counter-flow hot air for high evaporation efficiency
- Welded lifter flights for even material showering
- Built-in scrubber and dust collection option
Application Materials
Materials and industries our Single Pass Rotary Dryer serves worldwide.
Silica & Quartz Sand
Reduce moisture to <1% for dry screening, blending, and packing.
Mineral Concentrates
Dry metallic and non-metallic concentrates before storage or shipment.
Coal & Coke
Lower surface moisture for cleaner combustion and safer handling.
Slag & Fly Ash
Condition industrial by-products for cement and construction use.
Fertilizer & Compound
Dry granulated and prilled fertilizers to safe moisture levels.
Ore & Aggregates
Pre-dry sticky, high-moisture feed ahead of crushing or milling.
Features & Highlights
Engineered for reliable, low-cost operation in demanding duty.
Heavy-Duty Rotating Drum
Thick-plate drum with reinforced tyres and support rollers for years of continuous duty.
Adjustable Lifter Flights
Bolt-in flights tuned to material size and moisture for maximum heat transfer.
Fuel-Flexible Burner
Burn coal, gas, diesel, or biomass; temperature controlled to protect product quality.
Integrated Dust Control
Cyclone plus optional baghouse keeps emissions and product loss to a minimum.
Technical Parameters
Choose the model that fits your capacity. Contact us for custom configurations.
| Model | Drum Size (mm) | Capacity (t/h) | Final Moisture | Power (kW) | Weight (t) |
|---|---|---|---|---|---|
| MYC-PRD-600 | Φ600×6000 | 1.5-3 | ≤1% | 4 | 3.2 |
| MYC-PRD-800 | Φ800×8000 | 3-5 | ≤1% | 5.5 | 5.8 |
| MYC-PRD-1000 | Φ1000×10000 | 5-8 | ≤1% | 7.5 | 8.5 |
| MYC-PRD-1200 | Φ1200×12000 | 8-12 | ≤1% | 11 | 12 |
| MYC-PRD-1500 | Φ1500×14000 | 12-18 | ≤1% | 15 | 18 |
| MYC-PRD-1800 | Φ1800×18000 | 18-26 | ≤1% | 22 | 28 |
| MYC-PRD-2000 | Φ2000×20000 | 24-32 | ≤1% | 30 | 36 |
| MYC-PRD-2400 | Φ2400×22000 | 30-40 | ≤1% | 45 | 52 |
Successful Project Cases
Proven Single Pass Rotary Dryer installations delivered by Mingyuan Machinery.
Indonesia · Silica sand
Two MYC-PRD-1500 dryers cut sand moisture from 6% to below 0.5% for a glass-sand plant, enabling direct bagging.
Vietnam · Iron ore concentrate
MYC-PRD-2000 single-pass unit drying 26 t/h concentrate ahead of pelletizing, cutting shipping weight by 8%.
Tanzania · Coal
MYC-PRD-1200 drying 10 t/h thermal coal from 12% to 3% moisture for a brick kiln fuel line.
Get Your Free Quote Today
Ready to discuss your Single Pass Rotary Dryer project? Contact Mingyuan Machinery now for price, specifications, and a tailored solution.
