Sawdust Rotary Dryer
A rotating drum dryer built for sawdust and wood flour – lifts and showers wet chips through hot air in a single drum so moisture drops from 40% to 12% for safe briquetting and pellets.
General Introduction

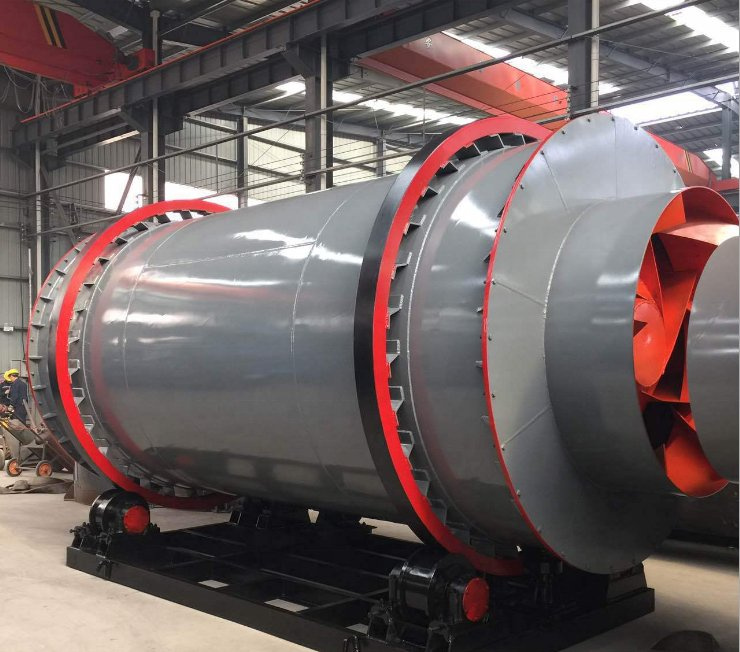

The sawdust rotary dryer is a purpose-built drum dryer for light, fluffy biomass. Wet sawdust is fed into a rotating, inclined drum where internal flights lift it into the hot air stream, showering it continuously so surface and bound moisture evaporate fast.
An induced-draft fan pulls the moist air and fine dust through a cyclone, returning most of the material while keeping the stack clean. Outfeed moisture is held at around 12%, the ideal level for briquette presses and pellet mills.

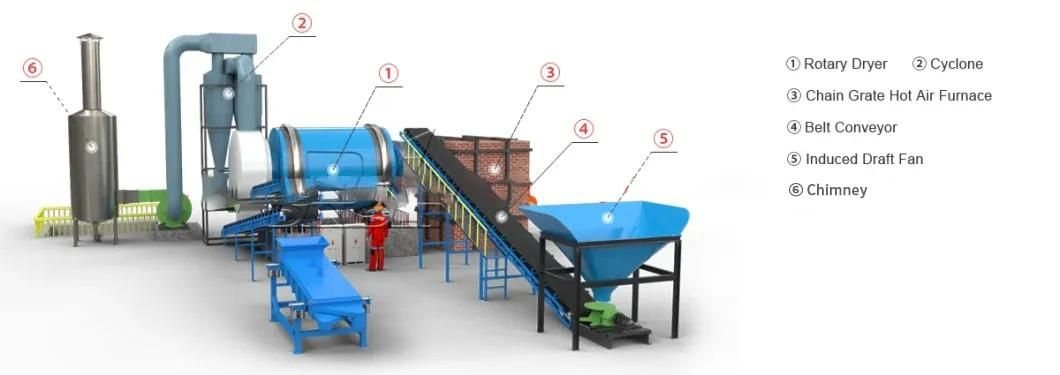

It pairs naturally with a hammer mill and a biomass burner, forming a compact sawdust drying line for wood pellet plants, charcoal kilns, and biomass power stations.
- Flights tuned for light, low-density sawdust
- Dries 40% feed moisture down to 12% in one drum
- Cyclone return minimises wood-powder loss
- Works with biomass or gas burners
Application Materials
Materials and industries our Sawdust Rotary Dryer serves worldwide.
Sawdust & Wood Flour
Prepare feed for briquetting and wood pellet lines.
Wood Pellets
Hit the 10-12% moisture window required by pellet mills.
Charcoal & Briquettes
Pre-dry before carbonisation to raise yield.
Mushroom Substrate
Condition wet sawdust for sterilised growing media.
Biomass Power
Dry forestry residue for cleaner, hotter combustion.
Animal Bedding
Lower moisture for absorbent, mould-free shavings.
Features & Highlights
Engineered for reliable, low-cost operation in demanding duty.
Biomass-Optimised Flights
Shallow, dense flights keep light sawdust airborne for fast, even drying.
Sealed Drum & Gaskets
Tight drum seals cut air leakage and hold drying temperature steady.
Cyclone Return System
Recovers fine dust back into the product stream, reducing loss.
Auto Feed Control
Variable-speed feeder matches drum load to burner output automatically.
Technical Parameters
Choose the model that fits your capacity. Contact us for custom configurations.
| Model | Drum Size (mm) | Capacity (t/h)* | Moisture In→Out | Power (kW) | Weight (t) |
|---|---|---|---|---|---|
| MYC-SRD-600 | Φ600×6000 | 0.5-1 | 40%→12% | 4 | 3.0 |
| MYC-SRD-800 | Φ800×8000 | 1-2 | 40%→12% | 5.5 | 5.5 |
| MYC-SRD-1000 | Φ1000×10000 | 2-3.5 | 40%→12% | 7.5 | 8.2 |
| MYC-SRD-1200 | Φ1200×12000 | 3-5 | 40%→12% | 11 | 11.5 |
| MYC-SRD-1500 | Φ1500×14000 | 5-8 | 40%→12% | 15 | 17 |
| MYC-SRD-1800 | Φ1800×18000 | 8-12 | 40%→12% | 22 | 26 |
Successful Project Cases
Proven Sawdust Rotary Dryer installations delivered by Mingyuan Machinery.
Malaysia · Sawdust
MYC-SRD-1500 drying 7 t/h sawdust from 45% to 11% for an export wood-pellet plant.
Nigeria · Wood flour
Two MYC-SRD-1000 units feeding a briquette line, cutting dryer moisture variance to ±1%.
Russia · Sawdust
MYC-SRD-1800 with biomass burner drying 11 t/h for a 6 MW heating plant.
