Sawdust Drying Machine
A packaged sawdust drying machine – drum, biomass burner, feeder, and cyclone on one frame – drying 40% feed to 12% moisture for pellets and briquettes.
General Introduction

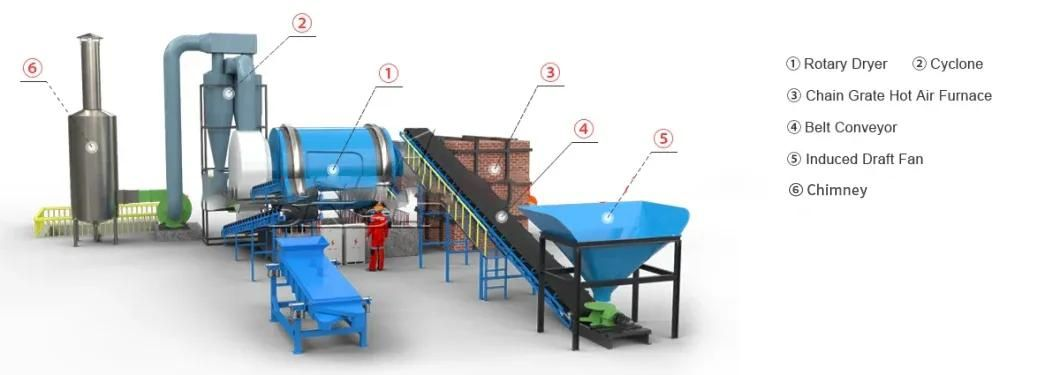

The sawdust drying machine is a factory-integrated biomass drying line. The rotary drum, combustion system, screw feeder, discharge auger, cyclone, and control cabinet ship as one unit, ready to connect to a hammer mill and pellet press.
The control panel links feeder speed to burner output and drum temperature, holding sawdust at the 12% moisture that pellet mills and briquette presses need, with minimal operator attention.
It gives wood-yard and pellet-plant owners a dried-sawdust stream without building a dryer from loose components – one supplier, one startup.
- Whole sawdust line on one frame
- Auto moisture hold at 12% for pellets
- Biomass or gas combustion options
- Fast commissioning, single warranty
Application Materials
Materials and industries our Sawdust Drying Machine serves worldwide.
Wood Pellets
Deliver on-spec dry feed to pellet mills.
Briquettes
Pre-dry sawdust before briquetting.
Charcoal
Lower moisture ahead of carbonisation.
Mushroom Substrate
Prepare sterile sawdust media.
Bioenergy
Dry residue for cleaner combustion.
Bedding
Produce dry, mould-free shavings.
Features & Highlights
Engineered for reliable, low-cost operation in demanding duty.
One-Frame Skid
Drum, burner, feeder, and panel pre-built and wired.
Linked Control
Feeder, burner, and drum temperature auto-balanced.
Biomass Burner
Burn wood waste on-site to cut fuel cost to near zero.
Dust Return
Cyclone recovers fine sawdust into the product.
Technical Parameters
Choose the model that fits your capacity. Contact us for custom configurations.
| Model | Drum Size (mm) | Capacity (t/h)* | Moisture In→Out | Power (kW) | Weight (t) |
|---|---|---|---|---|---|
| MYC-SDM-600 | Φ600×6000 | 0.5-1 | 40%→12% | 4 | 3.0 |
| MYC-SDM-800 | Φ800×8000 | 1-2 | 40%→12% | 5.5 | 5.5 |
| MYC-SDM-1000 | Φ1000×10000 | 2-3.5 | 40%→12% | 7.5 | 8.2 |
| MYC-SDM-1200 | Φ1200×12000 | 3-5 | 40%→12% | 11 | 11.5 |
| MYC-SDM-1500 | Φ1500×14000 | 5-8 | 40%→12% | 15 | 17 |
| MYC-SDM-1800 | Φ1800×18000 | 8-12 | 40%→12% | 22 | 26 |
Successful Project Cases
Proven Sawdust Drying Machine installations delivered by Mingyuan Machinery.
Vietnam · Sawdust
MYC-SDM-1500 machine drying 7 t/h to 11% for a pellet exporter.
Poland · Wood flour
MYC-SDM-1000 skid feeding a briquette press, commissioned in 4 days.
Chile · Sawdust
MYC-SDM-1200 with biomass burner drying 5 t/h for a heating plant.
Get Your Free Quote Today
Ready to discuss your Sawdust Drying Machine project? Contact Mingyuan Machinery now for price, specifications, and a tailored solution.
