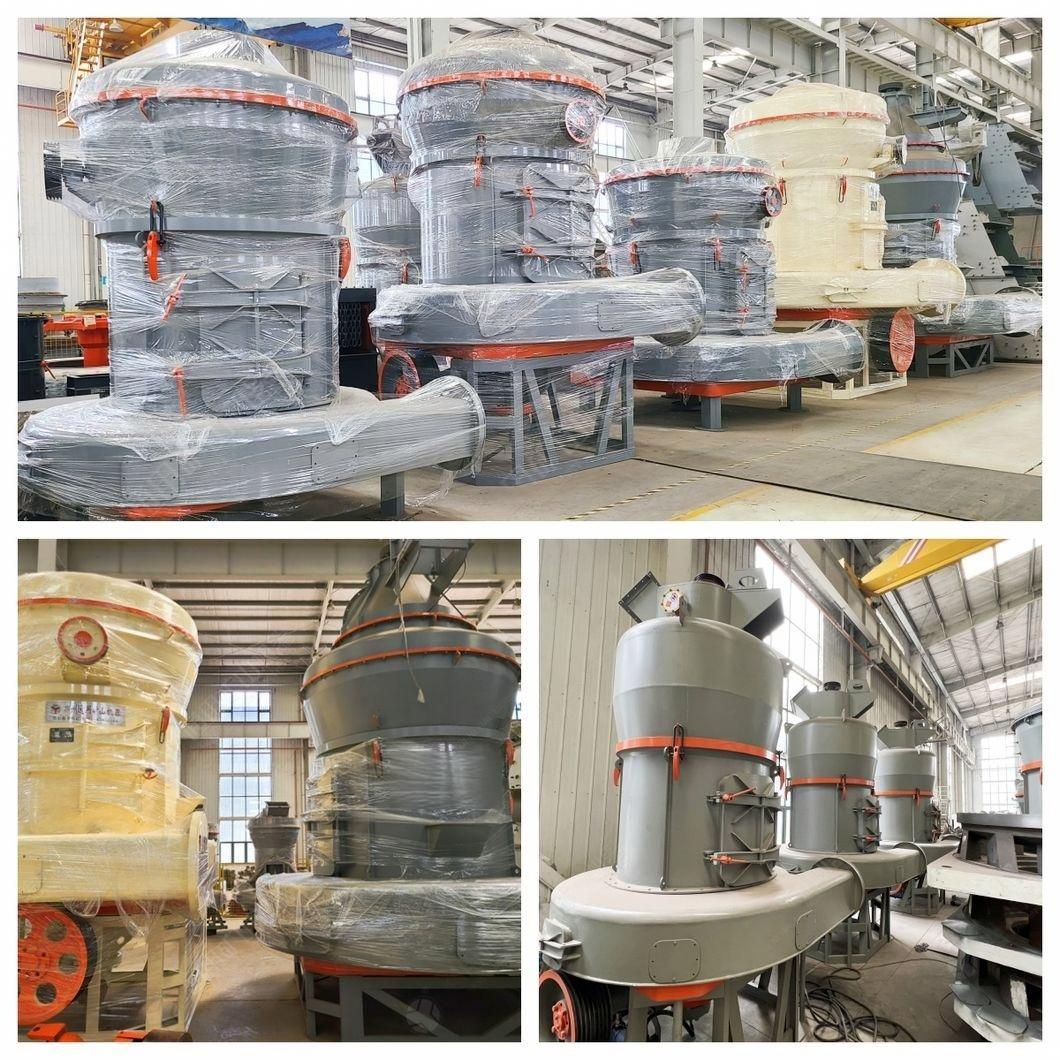

Raymond Mill
A classic pendulum Raymond mill that grinds non-flammable minerals from 80 to 400 mesh – the economical workhorse for limestone, barite, gypsum, and dozens of powders.
General Introduction
The Raymond mill is a pendulum roller mill that has set the standard for fine dry grinding of non-metallic minerals for nearly a century. Material is scooped up by fast-spinning plows and flung under a ring of spring-loaded rollers that crush it against a rotating grinding ring.

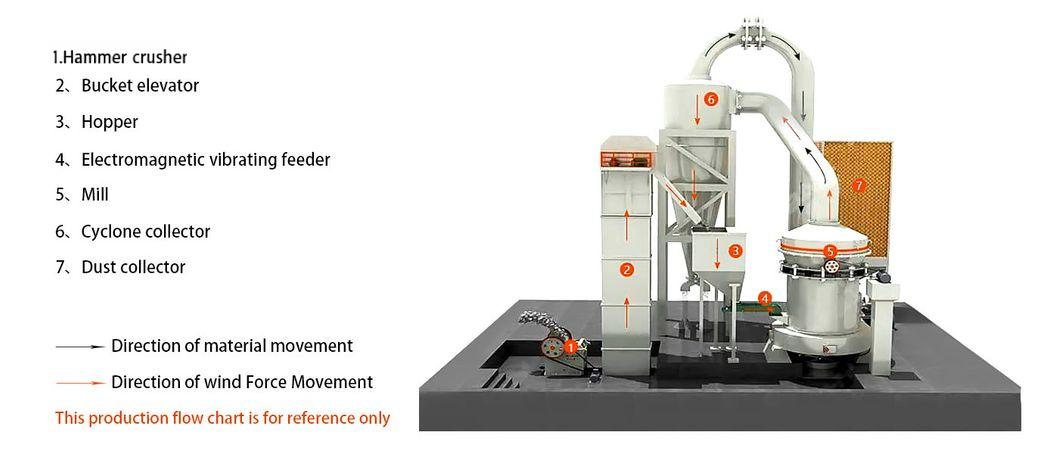

The fine powder is carried by an air stream to an integral classifier; oversize falls back to the ring while on-spec product is collected in a cyclone or baghouse. A central shaft and uniform roller pressure give a consistent, narrow particle size.
Because it is a closed, air-swept loop, the Raymond mill is clean, dust-tight, and easy to control – the first choice for processing plants that need 80-400 mesh powder at low cost and high uptime.
- Closed air-swept loop, dust-tight operation
- Spring-loaded rollers give even grinding pressure
- Integral classifier controls fineness in one pass
- Low energy per ton versus ball milling
Application Materials
Materials and industries our Raymond Mill serves worldwide.
Limestone & Calcite
Produce 200-400 mesh filler for cement and putty.
Barite
Grind baryte to spec for oilfield mud and paint.
Gypsum
Mill desulfurization and plaster gypsum powder.
Bentonite & Clay
Condition clays for cat litter and drilling mud.
Feldspar & Talc
Fine ceramics and cosmetics feedstock.
Marble & Kaolin
Make functional fillers for plastics and rubber.
Features & Highlights
Engineered for reliable, low-cost operation in demanding duty.
Pendulum Roller System
Spring-loaded rollers maintain steady pressure across the ring for uniform fineness.
Integral Classifier
Built-in impeller classifier trims cut point without external equipment.
Air-Swept Sealing
Negative-pressure loop keeps the mill dust-tight and clean.
Quick-Wear Liners
Rings and rollers use Mn-steel liners you can flip or replace.
Technical Parameters
Choose the model that fits your capacity. Contact us for custom configurations.
| Model | Roller / Ring (mm) | Capacity (t/h) | Fineness (mesh) | Power (kW) | Weight (t) |
|---|---|---|---|---|---|
| MYC-RM-3R | 270×140 | 0.5-3 | 80-325 | 15 | 4.2 |
| MYC-RM-4R | 320×160 | 1-5 | 80-325 | 30 | 7.5 |
| MYC-RM-5R | 410×210 | 3-8 | 80-400 | 75 | 14 |
| MYC-RM-6R | 510×260 | 6-15 | 80-400 | 132 | 22 |
| MYC-RM-7R | 610×300 | 10-25 | 80-400 | 220 | 34 |
Successful Project Cases
Proven Raymond Mill installations delivered by Mingyuan Machinery.
Iran · Limestone
MYC-RM-5R milling 7 t/h limestone to 325 mesh for a cement filler plant.
Vietnam · Barite
MYC-RM-4R grinding 4 t/h barite to 200 mesh for oilfield mud.
Egypt · Gypsum
Two MYC-RM-6R units producing 12 t/h desulfurization gypsum powder.
Get Your Free Quote Today
Ready to discuss your Raymond Mill project? Contact Mingyuan Machinery now for price, specifications, and a tailored solution.
