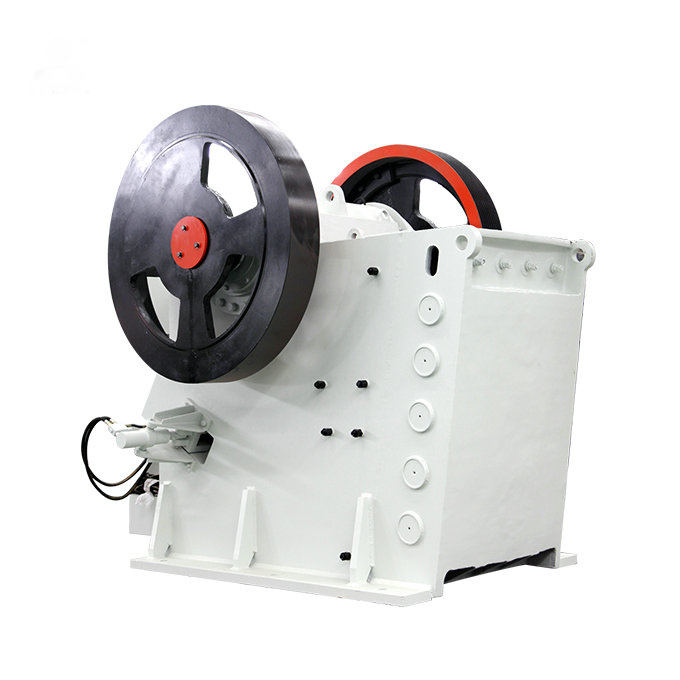

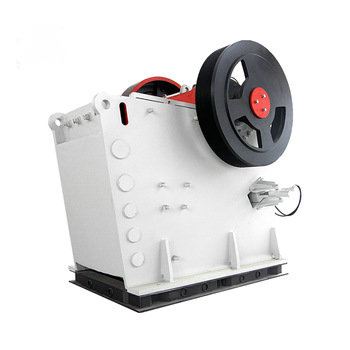

PEW Jaw Crusher
Modern hydraulic jaw crusher with automatic lubrication, overload protection, and CSS adjustment. Combines operator safety with consistent production output for medium to large crushing plants.
What is PEW Jaw Crusher?
PEW Jaw Crusher is a fully hydraulic primary crusher featuring automatic closed-side setting adjustment, integrated overload protection, and centralized automatic lubrication. The design prioritizes both operator safety and production consistency.
The hydraulic system controls all major adjustment and protection functions. CSS can be changed remotely from the control room, and the overload protection system automatically releases pressure when uncrushable material is detected.
An automatic lubrication system with flow monitoring ensures all bearing points receive the correct amount of grease at the right intervals, preventing both under-lubrication and over-greasing.
- Fully hydraulic CSS adjustment
- Automatic overload protection
- Centralized auto-lubrication
- Remote monitoring capable
Why Choose PEW Jaw Crusher?
Our PEW Jaw Crusher is engineered for reliability, efficiency, and superior output quality in demanding crushing applications.
Remote CSS Control
Change the crusher setting from the control room or even remotely via smartphone app. No need for personnel to enter the crusher area during adjustments.
Automatic Overload Protection
Pressure sensors detect overload events instantly. The hydraulic system releases and resets automatically, protecting the crusher and reducing unplanned downtime.
Consistent Lubrication
The automated lubrication system delivers precise grease quantities to each bearing point on a timed schedule, eliminating human error and extending component life.
Safer Maintenance
Hydraulic assist for jaw plate lifting and toggle removal reduces manual handling. Maintenance personnel work with powered tools instead of hammers and crowbars.
Product Features
Built with advanced engineering and high-quality components to maximize productivity and minimize downtime.
Hydraulic CSS System
Twin hydraulic cylinders adjust the toggle block position with ±1mm accuracy. Settings are stored and can be recalled for different product specifications.
Overload Detection
Pressure transducers on the hydraulic circuit monitor crushing forces in real time. Abnormal spikes trigger automatic release and alarm notification.
Auto-Lube with Monitoring
Progressive divider valve system delivers metered grease to each bearing. Flow sensors confirm delivery, and low-level alarms warn of supply issues.
PLC Integration Ready
Standard Modbus/Profibus interfaces allow seamless integration with plant SCADA systems for centralized monitoring and data logging.

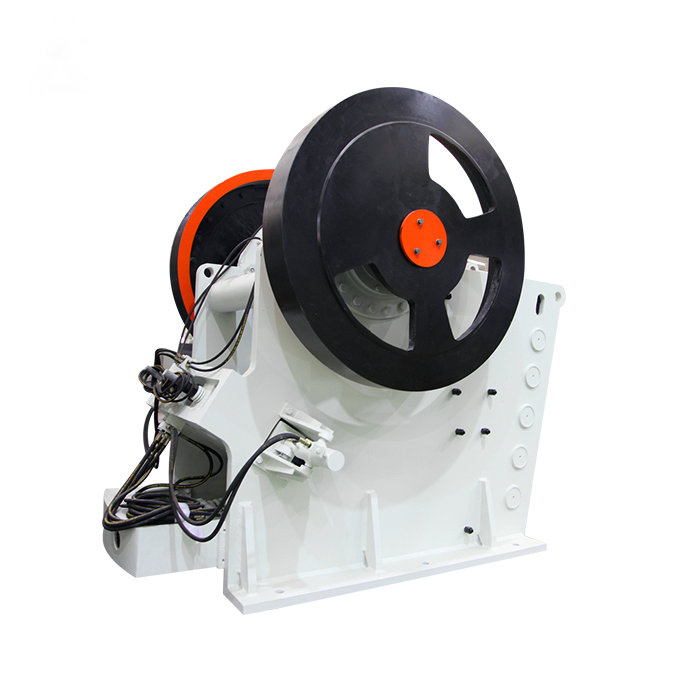

Working Principle
The PEW Jaw Crusher uses mechanical force to break down large rocks into smaller aggregate pieces through a precise crushing process.
- Material is fed into the crushing chamber through the large feed opening.
- The eccentric shaft drives the pitman, causing the movable jaw to oscillate toward and away from the fixed jaw.
- Material is crushed between the jaw plates, with the hydraulic system maintaining constant CSS regardless of liner wear.
- If an overload occurs, pressure sensors detect the spike and the hydraulic system releases the toggle tension immediately.
- After passing the obstruction, the system automatically resets to the programmed CSS and resumes normal operation.
PEW series offers the widest model range. Contact us to select the optimal model for your feed size and capacity requirements.
Technical Specifications
Choose the right model for your production needs. Contact us for customized crushing solutions.
| Model | Feed Opening (mm) | Max Feed (mm) | Capacity (t/h) | Power (kW) |
|---|---|---|---|---|
| PEW-250×1000 | 250×1000 | 220 | 15-50 | 30 |
| PEW-250×1200 | 250×1200 | 220 | 20-60 | 37 |
| PEW-400×600 | 400×600 | 350 | 25-80 | 37 |
| PEW-500×750 | 500×750 | 425 | 40-110 | 55 |
| PEW-600×900 | 600×900 | 500 | 70-180 | 75 |
| PEW-750×1060 | 750×1060 | 630 | 130-320 | 110 |
| PEW-900×1200 | 900×1200 | 750 | 220-500 | 132 |
| PEW-1000×1200 | 1000×1200 | 850 | 280-650 | 160 |
| PEW-1200×1500 | 1200×1500 | 1020 | 400-900 | 220 |
