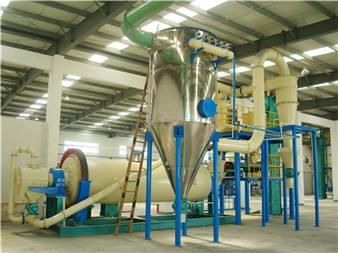

Limestone Ball Mill
A horizontal ball mill that grinds limestone into fine powder for cement, filler, and desulfurization – robust, familiar, and easy to service.
General Introduction

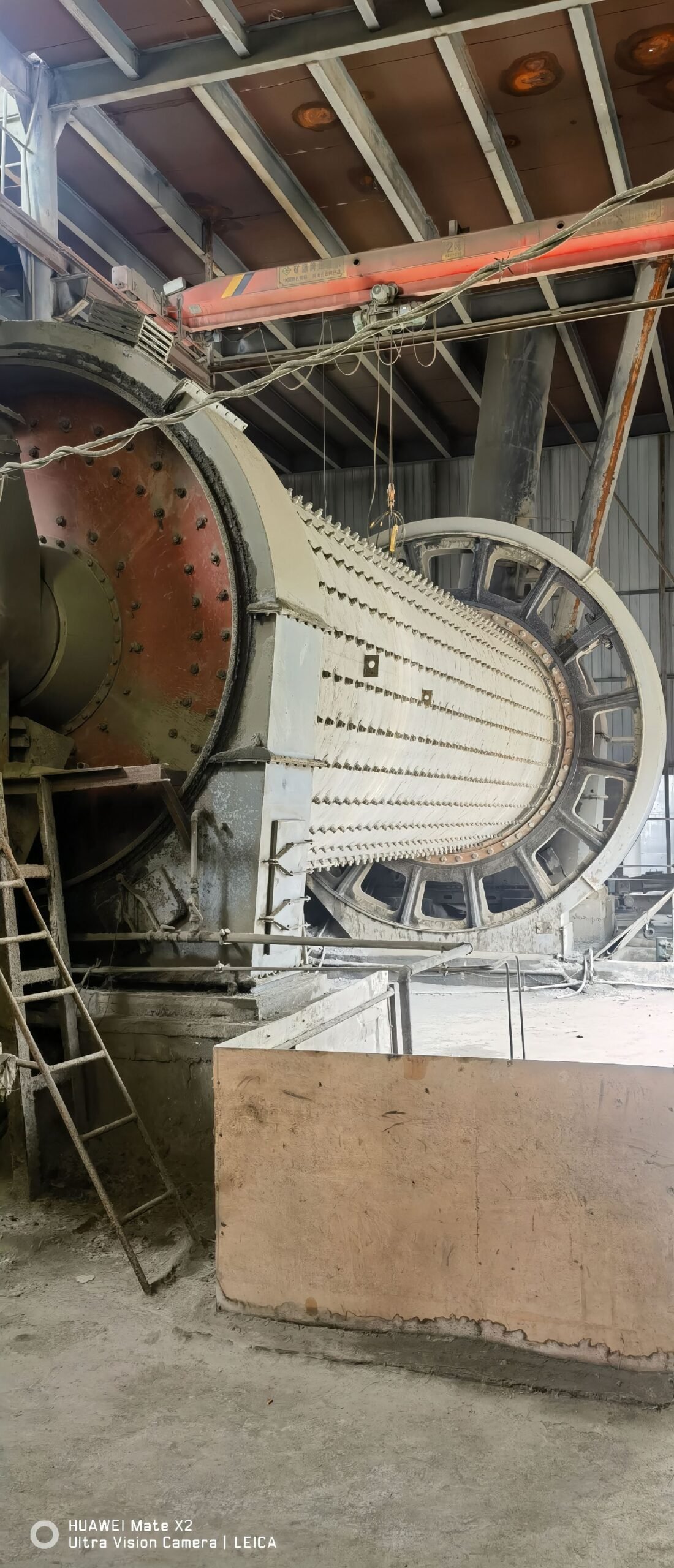

The limestone ball mill is a rotating cylindrical shell half-filled with grinding media. As the shell turns, the balls cascade and crush the limestone fed through the trunnion, discharging ground slurry or dry powder at the other end.
It is the most established fine-grinding machine: simple to operate, tolerant of hard and abrasive feed, and easy to reline. With a classifier in closed circuit it produces consistent filler and cement-raw powder.
For plants that already run ball mills, adding a limestone ball mill keeps maintenance, spares, and know-how common across the site.
- Proven, easy-to-service design
- Tolerant of hard, abrasive limestone
- Common spares with existing mills
- Dry or wet grinding options
Application Materials
Materials and industries our Limestone Ball Mill serves worldwide.
Cement Raw Meal
Grind limestone into raw-meal powder.
Filler & Putty
Make fine limestone filler for construction.
Desulfurization
Produce FGD limestone slurry.
Glass & Ceramics
Prepare CaO-bearing raw material.
Agriculture
Fine agricultural lime for fields.
Chemical
Neutralising powder for industry.
Features & Highlights
Engineered for reliable, low-cost operation in demanding duty.
Heavy Cylinder
Thick shell and welded ends for years of service.
Mn-Steel Liners
Bolt-in liners you can flip or replace as wear dictates.
Closed-Circuit Ready
Pairs with classifier for steady fine product.
Trunnion Bearings
Large flooded bearings carry heavy, continuous load.
Technical Parameters
Choose the model that fits your capacity. Contact us for custom configurations.
| Model | Drum Size (mm) | Capacity (t/h) | Feed (mm) | Power (kW) | Weight (t) |
|---|---|---|---|---|---|
| MYC-LBM-900 | 900×1800 | 0.6-2 | <25 | 18.5 | 4.5 |
| MYC-LBM-1200 | 1200×2400 | 1-3.5 | <25 | 30 | 9.5 |
| MYC-LBM-1500 | 1500×3000 | 2.5-6 | <25 | 55 | 15 |
| MYC-LBM-1830 | 1830×4500 | 5-12 | <25 | 110 | 28 |
| MYC-LBM-2100 | 2100×6000 | 10-20 | <25 | 185 | 46 |
Successful Project Cases
Proven Limestone Ball Mill installations delivered by Mingyuan Machinery.
Russia · Limestone
MYC-LBM-1830 grinding 10 t/h limestone for a cement raw-meal line.
Bangladesh · Limestone
MYC-LBM-1500 producing 5 t/h filler for dry-mix mortar.
Colombia · Limestone
MYC-LBM-1200 milling 3 t/h for an FGD slurry plant.
