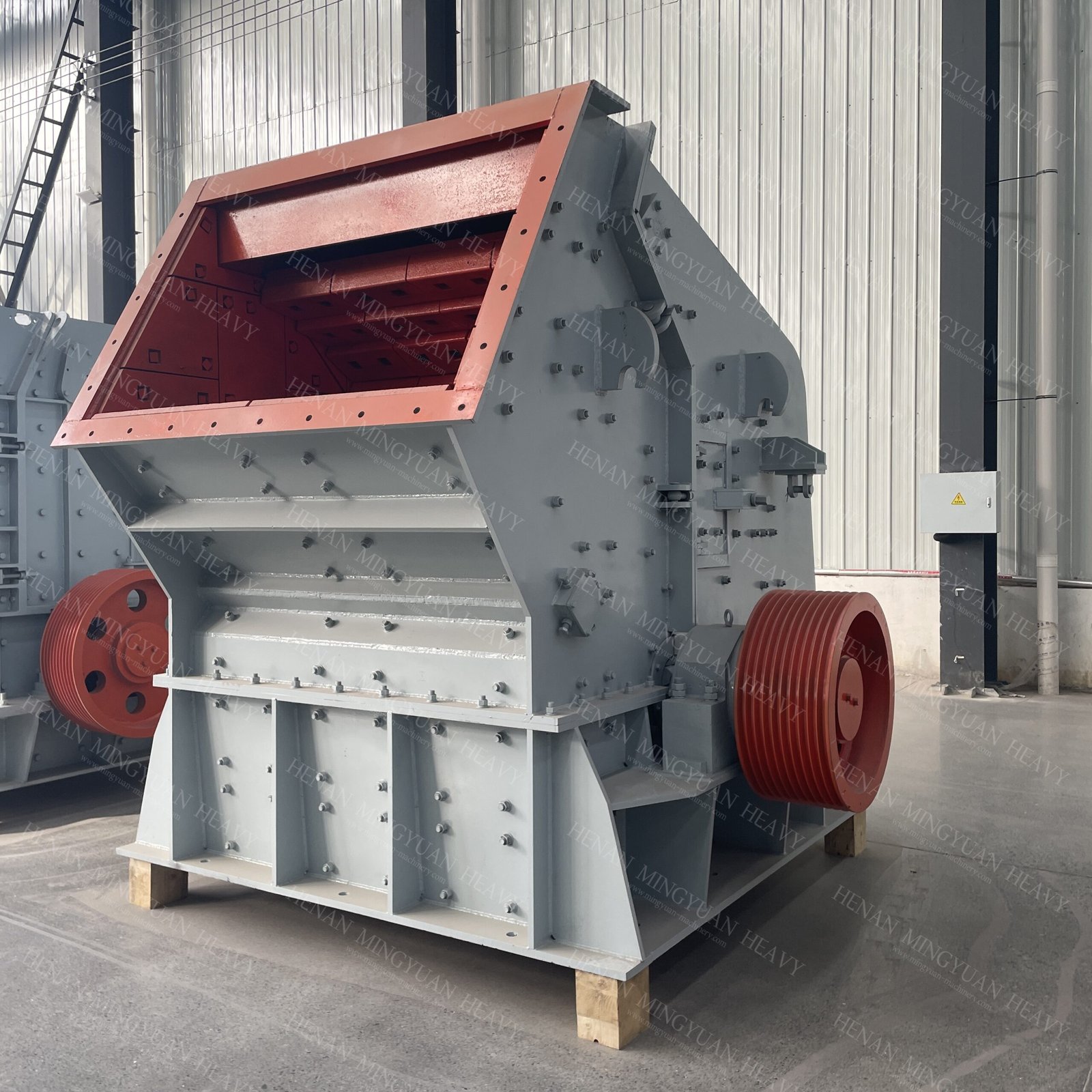

PF Impact Crusher
High-performance secondary crushing equipment for quarries, mining, and aggregate production. Designed to produce cubical-shaped materials with minimal fines.
What is PF Impact Crusher?
Impact crusher is a type of size reduction machine that uses high-speed impact force to break down materials into smaller pieces. It utilizes horizontal shafts with rotating blow bars to hurl materials against fixed impact plates or aprons.
This impact-based crushing creates minimal fines and produces uniformly shaped, cubical particles. It typically cooperates with a jaw crusher in the stone production line. The discharge particle size can be adjusted, and the crushing specifications are diversified.
Impact crushers are widely used in various ore crushing, railway, highway, and construction industry artificial sand and gravel production.
- High crushing ratio and efficiency
- Low operating and maintenance cost
- Cubic finished product shape
- Adjustable output size
Why Choose PF Impact Crusher?
Our impact crushers are engineered for reliability, efficiency, and superior output quality in demanding crushing applications.
Moisture-Resistant Crushing
More effective in processing materials with high moisture content. No bottom sieve plate is needed, effectively preventing material clogging.
Wide Material Hardness Range
Blow bars are firmly fixed on the rotor with a mechanical clamping structure. Greater momentum makes it suitable for crushing harder materials while consuming less energy.
Flexible Discharge Adjustment
Output particle size can be adjusted by rotor speed, impact plate gap, or grinding chamber gap — mechanically or hydraulically.
Longer Wear Parts Life
Triple impact plate structure increases the number of strikes on material, reduces friction and hammer head loss, and prolongs wear-resistant parts service life.
Product Features
Built with advanced engineering and high-quality components to maximize productivity and minimize downtime.
Cubic Product Shape
Hydraulically assisted apron adjustment and optimized rotor design ensure uniform particle size and excellent cubical shape for high-grade aggregate.
High-Chromium Blow Bars
Adopts high-chromium wear plates with outstanding shock and abrasion resistance, delivering powerful impact force with minimal energy consumption.
Adjustable Particle Size
Changing the gap between impact plate and rotor allows precise product size adjustment for different aggregate grades.
Easy Maintenance & Safety
Hydraulic opening mechanism provides easy access to the crushing chamber, simplifying wear part replacement and inspection.
Working Principle
PF Impact Crusher uses kinetic energy to shatter rock through a high-speed impact process.
- Rock enters the crushing chamber through the feed opening.
- The material is immediately struck by chrome blow bars mounted on a fast-spinning rotor.
- The rock is thrown against heavy steel impact plates (curtains) and shatters.
- The fragments bounce back to the rotor to be hit again until they reach the required size.
- Final product discharges through the bottom outlet, creating stress-free, cubical-shaped stone.
The clearance between the impact rack and rotor can be adjusted to control the size and shape of the end product.
Technical Specifications
Choose the right model for your production needs. Contact us for customized crushing solutions.
| Model | Rotor Size D×L (mm) | Feed Opening (mm) | Max Feeding Size (mm) | Capacity (t/h) | Power (kW) |
|---|---|---|---|---|---|
| PF-1007 | Φ1000×700 | 450×730 | 250 | 10-60 | 45 |
| PF-1010 | Φ1000×1050 | 400×1080 | 300 | 50-90 | 55 |
| PF-1210 | Φ1250×1050 | 450×1150 | 300 | 70-130 | 90 |
| PFW-1210 | Φ1250×1050 | 450×1150 | 300 | 75-140 | 90 |
| PFW-1214 | Φ1250×1400 | 450×1460 | 350 | 100-180 | 132 |
| PFW-1315 | Φ1320×1500 | 550×1520 | 350 | 130-220 | 200 |
| PFW-1320 | Φ1320×2000 | 550×1900 | 400 | 160-350 | 250 |
| PFW-1515 | Φ1500×1500 | 930×1550 | 600 | 200-400 | 280 |
| PFW-1520 | Φ1512×2000 | 930×2040 | 700 | 300-450 | 355 |
| PFW-1820 | Φ1800×2000 | 1620×2040 | 700 | 500-800 | 2×315 |
