Rod Ball Mill

MINGYUAN Rod Mill: Reliable Grinding for Coarse Materials in Mining and Construction

In the world of industrial grinding, different materials require different approaches. For coarse grinding applications where uniform particle size and reduced fines are essential, the Rod Mill has long been a preferred solution. As part of the MINGYUAN Ball Mill Series, the MINGYUAN Rod Mill combines proven grinding principles with robust construction and customization options to meet the unique needs of mining, construction, and industrial clients.

This article explores the MINGYUAN Rod Mill in detail, covering its structure, working principle, advantages, applications, and technical features. With over 1500 words, it is designed to provide website visitors and potential customers with a comprehensive understanding of what makes this equipment essential in modern processing lines.

What Is a Rod Mill?

A Rod Mill is a type of grinding equipment that uses steel rods as the grinding medium. Unlike ball mills, which use balls to pulverize material, a rod mill grinds material by tumbling rods inside a rotating drum. This design results in coarser output with fewer fines, making it ideal for certain stages of mineral processing and industrial material preparation.

Rod mills are particularly effective when used before ball mills in two-stage grinding circuits or when handling brittle materials that don’t require ultra-fine grinding.

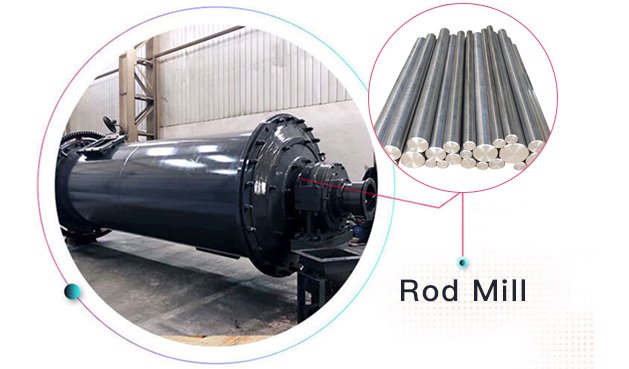

MINGYUAN Rod Mill Overview

MINGYUAN has been a trusted manufacturer of industrial grinding equipment for years, and its Rod Mill offering reflects that experience and expertise. Each MINGYUAN Rod Mill is engineered for:

• Consistent particle size distribution

• Efficient grinding with minimal energy waste

• Durability under heavy loads

• Easy maintenance and integration into existing systems

The rod mill can be customized with various linings, discharge types, drive systems, and support configurations to align with your specific processing goals.

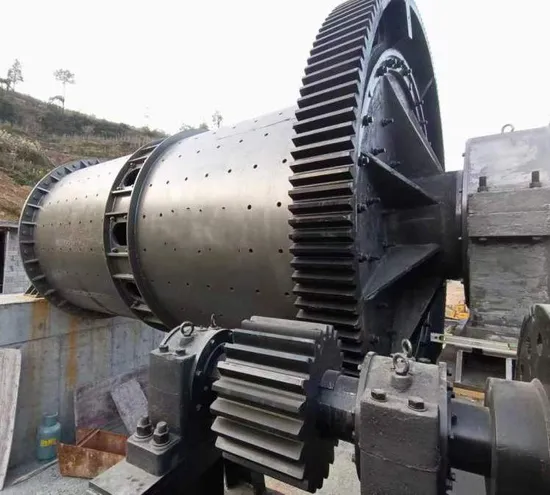

Structure and Components

A standard MINGYUAN Rod Mill includes:

1. Rotary Drum:

   • Made from high-strength steel or alloy

   • Available in multiple diameters and lengths

2. Grinding Rods:

   • Steel rods selected based on the material hardness and expected discharge size

   • Typically 100 mm shorter than the drum to allow space for movement

3. Feeding System:

   • Manages even distribution of raw materials into the drum

4. Discharge System:

   • Choose from overflow type or end peripheral discharge depending on your application

5. Transmission and Motor:

   • Heavy-duty gears and motors ensure stable operation

   • Siemens motor options available

6. Liner Options:

   • Manganese steel, rubber, or ceramic for wear resistance

Working Principle

The MINGYUAN Rod Mill operates on a simple yet effective principle:

1. Raw material enters the mill through the feeding device.

2. As the drum rotates, the steel rods tumble inside.

3. The rods move in a cascading motion, crushing and grinding the material by line contact rather than point impact.

4. Ground material exits through the discharge end—overflow or peripheral—depending on the setup.

Because of the rod’s linear grinding, this method produces a more uniform product with fewer ultra-fine particles.

Key Advantages of the MINGYUAN Rod Mill

1. Consistent Product Size

   • Ideal for producing materials where overgrinding is a concern

   • Reduces need for further classification or screening

2. Energy Efficiency

   • Lower specific energy consumption than ball mills for equivalent tasks

3. Reduced Equipment Wear

   • Fewer fines means less internal abrasion

   • Longer life of liners and grinding media

4. Simplified Flow Design

   • Especially useful in two-stage grinding with ball mills downstream

5. Custom Engineering

   • Tailor-made designs to match customer requirements, whether in a mobile plant or fixed installation

Typical Applications

MINGYUAN Rod Mills are highly versatile and used in a wide range of industrial sectors:

1. Mining Industry

• Pre-grinding before ball milling

• Grinding of iron ore, copper ore, gold ore, and other metals

• Beneficiation processes requiring coarse liberation

2. Construction Materials

• Production of sand for concrete and asphalt

• Grinding of limestone, granite, and basalt for aggregates

3. Chemical and Industrial Processing

• Coal and coke crushing for fuel preparation

• Phosphate and potash grinding

4. Glass and Ceramics

• Pre-treatment of silica sand and feldspar

• Uniform sizing for high-end ceramic products

5. Environmental Applications

• Slag recycling

• Processing of demolition waste and industrial byproducts

Sample Technical Specifications

Integration and Pairing

MINGYUAN Rod Mills can be easily integrated into full mineral processing lines. We often pair them with:

• Jaw Crushers and Cone Crushers for primary size reduction

• Ball Mills for secondary fine grinding

• Spiral classifiers and hydrocyclones for classification

• Vibrating screens for final product sizing

Optional Features

• Inverter Control: For adjustable rotation speed

• Dust Collection Ports: For environmental compliance

• Auto-lubrication Systems: For minimal maintenance

• PLC + HMI Panels: For advanced control and remote monitoring

• Mobile Frame Design: For temporary projects or field operations

Why Choose MINGYUAN Rod Mill?

1. Reliable Manufacturing

   • ISO-certified workshops

   • Strict quality control from steel sourcing to final assembly

2. Comprehensive Support

   • Pre-sale consultation

   • On-site installation and training

   • Long-term spare parts supply

3. Competitive Pricing

   • Direct factory supply

   • No middleman costs

4. Proven Track Record

   • Used in more than 30 countries

   • Trusted by mining and construction companies worldwide

Conclusion

The MINGYUAN Rod Mill is a powerful, efficient, and customizable grinding solution for clients who need coarse, uniform output with minimal fines. Whether you’re involved in mineral processing, construction materials, or chemical manufacturing, the MINGYUAN Rod Mill provides the performance and dependability you need to keep your operations moving efficiently.

Backed by engineering expertise and a commitment to quality, MINGYUAN continues to be a leading provider of industrial grinding machinery. For more information or to request a quote, contact our team today.

MINGYUAN – Reliable Grinding Solutions for a Growing World.
