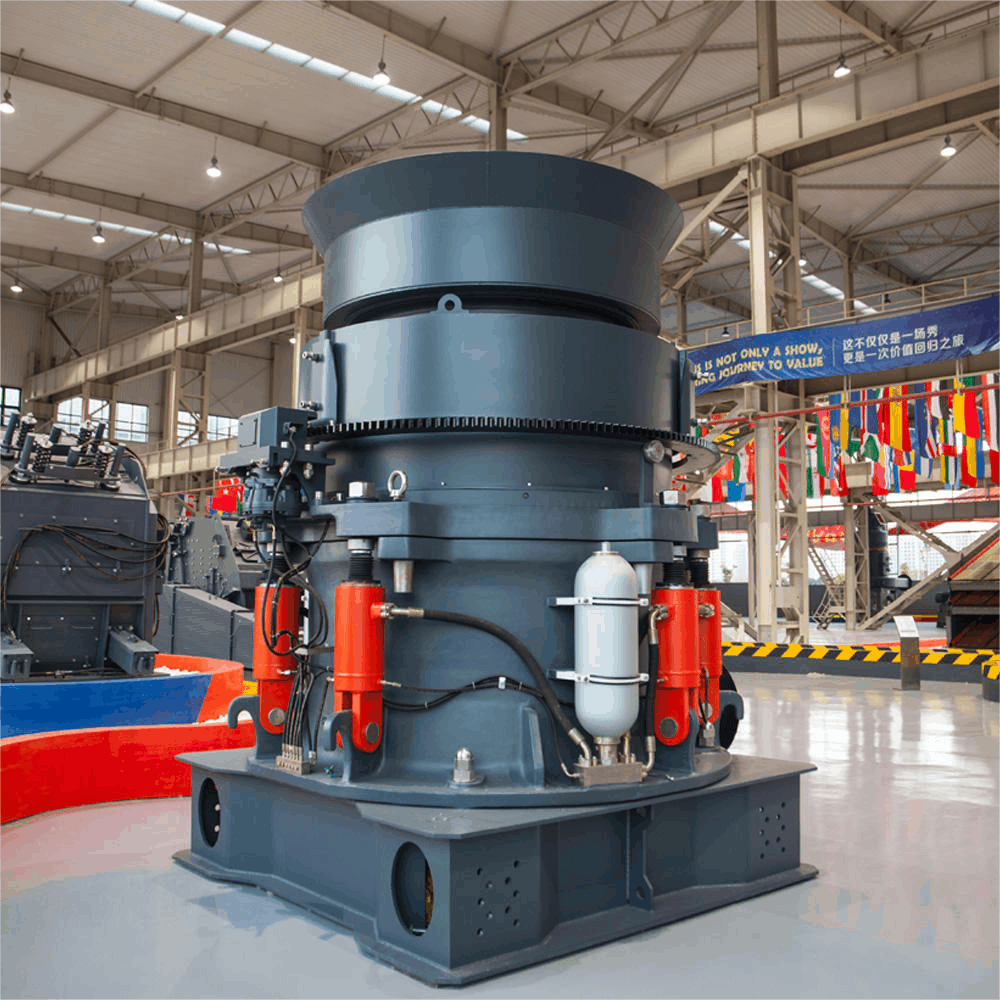

Hydraulic Cone Crusher-Hard stone crushing expert
Based on the structure of traditional multi-cylinder hydraulic cone crusher with the fixed main shaft and the eccentric bushrotating around the main shaft, and the laminating crushing principle,MINGYUAN greatly optimizes the structure of HPT Multi-cylinder Hydraulic Cone Crusher, which greatly improves the performance and crushing capability. Meanwhile, the hydraulic lubrication system of HPT Cone Crusher ensures more intelligent and more stable operation.
Materials:Granite, diabase, basalt, pebble, limestone, dolomite, metallic ores and non-metallic ores, etc.
Model | Cavities | Feed opening (mm) | Capacities (t/h) | Maximum installed power (kw) | Overall dimension (mm) |
HPT100 | C1(Extra Coarse) | 140 | 75-140 | 90 | 1705×1510×1583 |
C2(Coarse) | 100 | 60-110 | |||
M(Medium) | 70 | 52-100 | |||
F1(Fine) | 50 | 50-95 | |||
F2(Extra Fine) | 20 | 45-90 | |||
HPT200 | C2(Coarse) | 185 | 145-250 | 160 | 2135×1750×1927 |
M(Medium) | 125 | 135-235 | |||
F1(Fine) | 95 | 115-220 | |||
F2(Extra Fine) | 75 | 90-190 | |||
HPT300 | C1(Extra Coarse) | 230 | 220-440 | 250 | 2725×2110×2871 |
C2(Coarse) | 210 | 190-380 | |||
M(Medium) | 150 | 175-320 | |||
F1(Fine) | 105 | 145-280 | |||
F2(Extra Fine) | 80 | 110-240 | |||
HPT400 | C1(Extra Coarse) | 295 | 300-630 | 315 | 2775×2370×2295 |
C2(Coarse) | 251 | 285-560 | |||
M(Medium) | 196 | 250-490 | |||
F1(Fine) | 110 | 180-345 | |||
F2(Extra Fine) | 90 | 135-320 | |||
HPT500 | C1(Extra Coarse) | 330 | 425-790 | 400 | 2800×3480×4050 |
C2(Coarse) | 290 | 370-700 | |||
M(Medium) | 210 | 330-605 | |||
F1(Fine) | 135 | 270-535 | |||
F2(Extra Fine) | 95 | 220-430 | |||
HPT800 | C1(Extra Coarse) | 350 | 570-1200 | 630 | 3970×3345×4235 |
C2(Coarse) | 299 | 520-1050 | |||
M(Medium) | 265 | 475-950 | |||
F1(Fine) | 220 | 370-800 | |||
F2(Extra Fine) | 150 | 310-600 |
Product Advantages
Cone rock crusher Qualified cone crusher applies advanced PLC electrical system, which can continuously monitor the crusher and provide alarms to display various operating parameters.
Cone rock crusher Qualified cone crusher optimizes the transmission parts and the lubrication and sealing structure. It has strong holding capacity, larger crushing power, higher efficiency yet lower noises.
Cone rock crusher Qualified cone crusher adopts the laminating crushing principle to crush materials. The final products are cubical and of high content of fine powder.
Cone rock crusher Qualified cone crusher is equipped with several crushing cavities. Operators can freely make choices among different cavities by changing only a few spare parts like the lining plate.
